TOOLKITRC CHARGER M8D TOUCHSCREEN

ToolkitRC M8D LiPo 1-8S 30A 2 Channel Charger DC 10-49V

M8D THE FIRST TOUCHSCREEN CHARGER

Touch Screen Capacitive | Cool Supercar Dial | 1600W/50A MAX Power | 3.5″ Flip Screen 480×320px | 65w Fast Charger

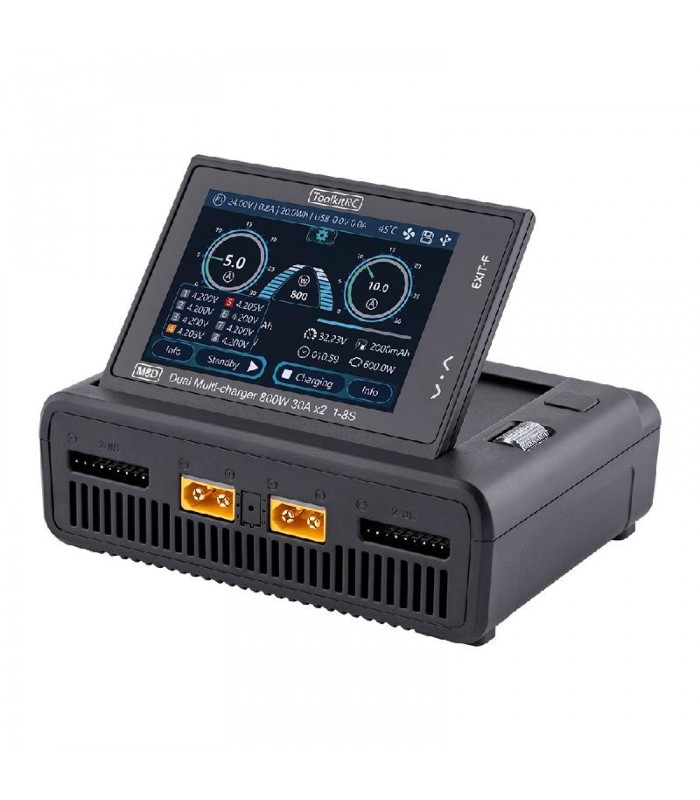

●New UI Design: Highly adapted to the use of touch-screen habits;

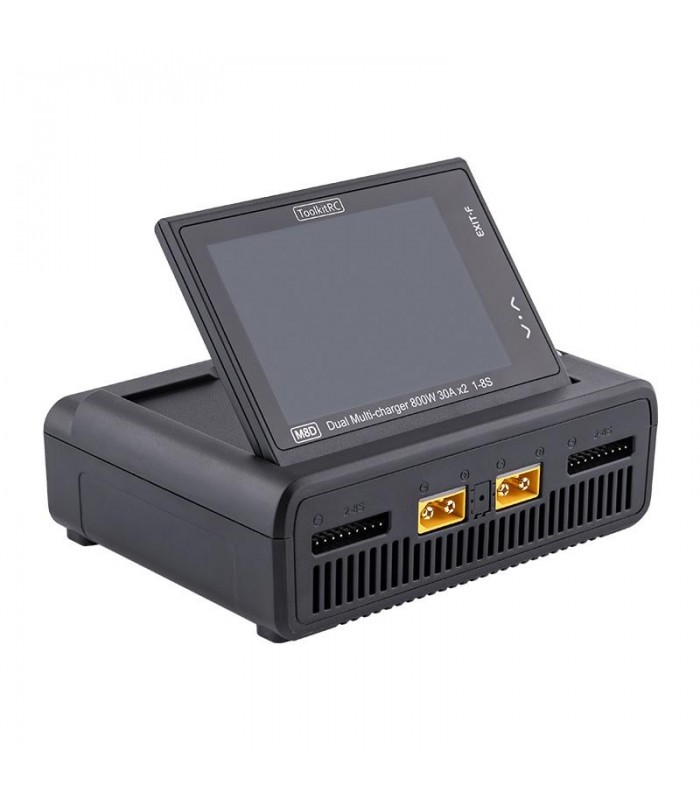

●Extra Large Flip Screen Design: 80° adjustable angle, 3.5″ IPS;

●Dual Channels 8S Independent Output: Total output power up to 1600W, Synchronized mode supports 50A charging;

●65W Powerful Fast Charging;

●Battery Destruction Function: Provide safer disposal of used batteries;

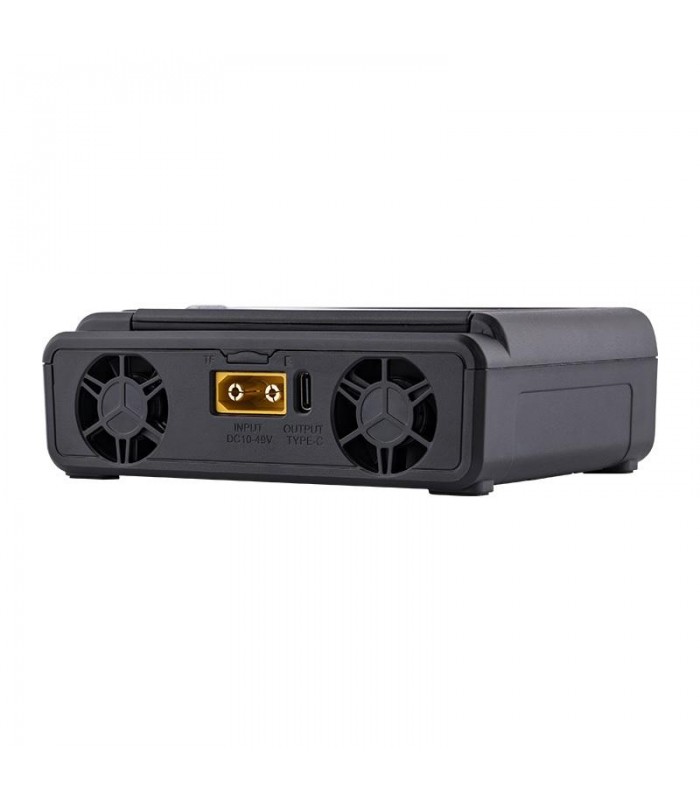

●Dual Fans with Infinitely Adjustable Speed, More Silent:According to the real-time temperature and power, precise control of speed, high efficiency and low noise

●TF Card Logging: Full support for charging and discharging data storage and analysis;

Specs:

Input 10-49V @MAX 60A

Battery type LiPo LiHV LiFe Lilon LTO@1-8S NiMH @1-20S Pb @1-12S

Balance current 2000mA @ 4.2V

Charging power 800W@MAX 30A*2 (Asynchronous mode) 1600W@MAX 50A (Synchronous mode)

Discharging power 800W @MAX 30A *2 Recycle mode 40W@10A Normal mode

USB-C output 65W@5.0-20.0V or Upgrade

Tip: when input under 10~36V, the 65W USB-C output is available

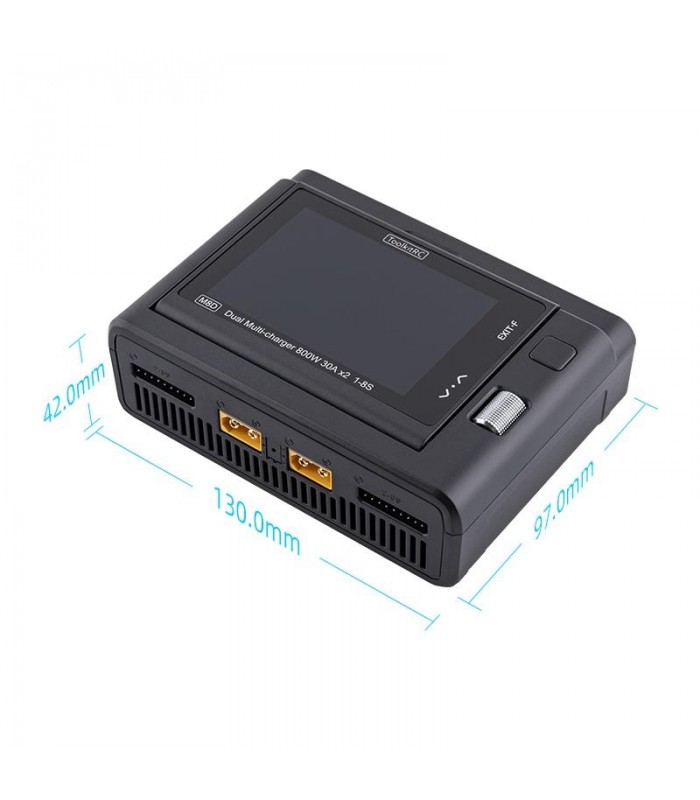

Product size 130×97×42mm

Product weight 450g

Pack size 140×110×50mm

Pack weight 700g

LCD IPS 3.5 LCD 320×480px

Touch panel Capacitive

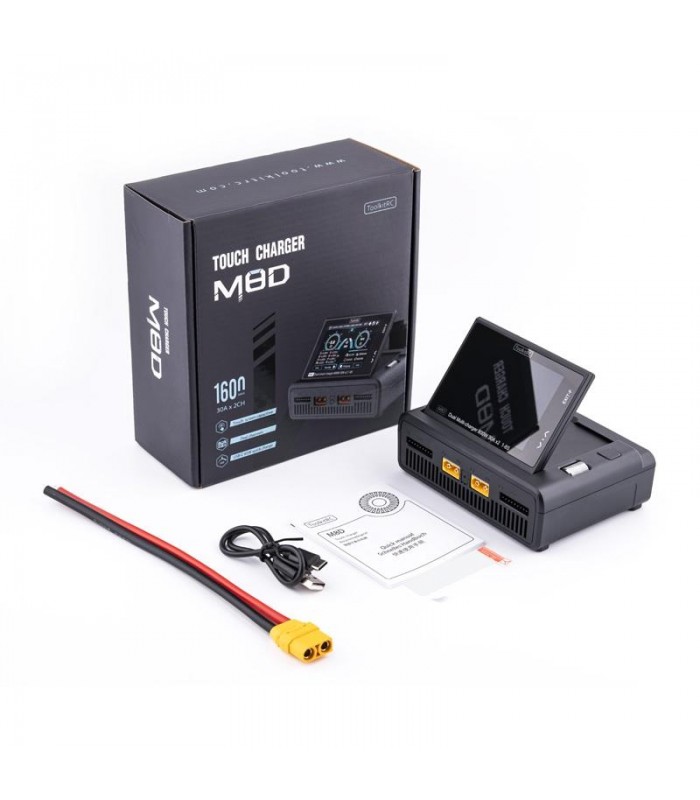

Included in the box: M8D Charger × 1, USB-C Cable × 1, XT90 Input Cable × 1, Manual × 1, Screen Protector × 1
