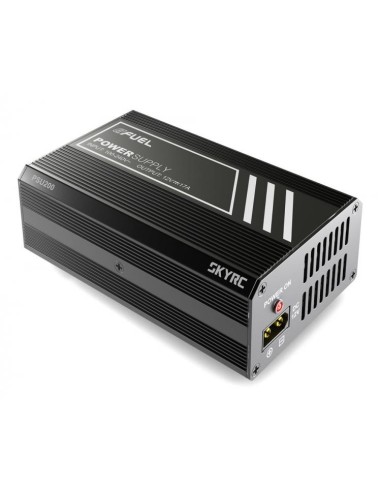

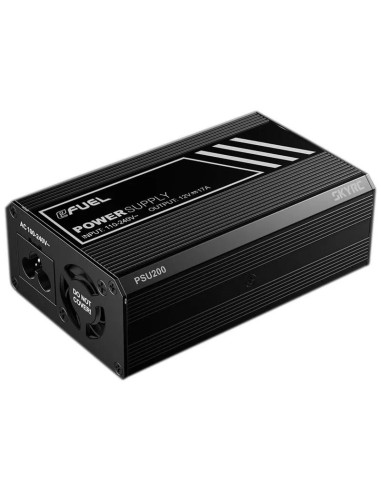

SKYRC 200W POWER SUPPLY

SKYRC Power Supply 12V/17A/200W

Built for most demanding pocket chargers

Converts standard household power 100-240V AC to 12V DC power and supply up to 17 amperes of continuous power.

Small in size, big on power

Though in a tiny body, PSU200W delivers over 93% power efficiency to pump enough power for RC hobbyists!

Size:112x710x40mm

Safe and Reliable:

Short-circuit protection on output

Over Current Protection

Over Temperature Protection

Over Load Protection

Over Voltage Protection

Generic XT60 Connector

With the almost de facto standard of XT60 connector, reverse polarity preventing and the super-solid connection is secured!

Intelligent Air Cooling System

Thermal Controlled 8000rpm high-speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device

Overload/Error Indication

The LED indicator turns off whenever the device connected to the Power Supply is drawing more power than it can provide. The power supply will shut down its output to protect its circuitry from damage, then reset automatically.

Specifications:

Case Size£º112x71x40.3mm

Weight£º380g

Voltage£º100-240V

Input AC Frequency£º50-60Hz

Output Current£º17A

Output Voltage£º12V DC¡À0.5V

Output Voltage Ripple£º<300mV

Power Efficiency£º93%

Power Factor£º>0.98

Protection:

Current Overload Protection£º>17A

> Over Temperature Protection£º>105¡æ

Cooling Method£ºCooling Fan

Enviroment:

Operating Temperature£º0-40¡æ

Operating Humidity£º10%-90
