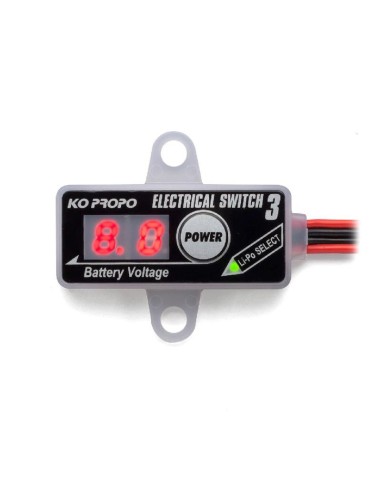

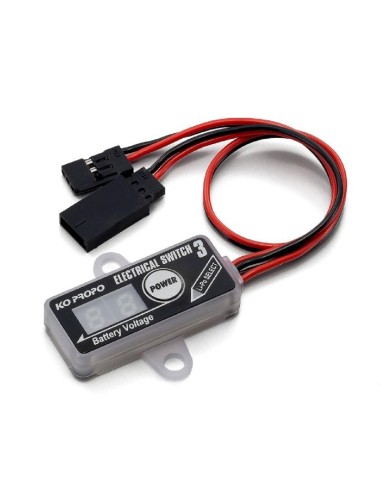

KO PROPO ELECTRICAL SWITCH 3

This is Electorical controled Power switch unut. The CPU remembers the current power state ON/OFF. It prevents the power supply from turning off due to poor contact of the connector by the vibration in the engine car or momentary or voltage drop at overload.

?Voltage displaied by the 7 segment LED.

Built in 7 segment LED to easily see the battery voltage monitoring.

The current battery voltage is displayed for 5 seconds one the power is turned ON.

After 5 seconds, the minimum voltage is always displayed.

So, the voltage at the time of the voltage drop during running can be easily confirmed.

?Translucent case

Since we adopted a translucent case, we can judge the ON/OFF state of the power supply from the side of the switch.

Also, Li-po mode state as like as too.

?LIPO mode for safety Using.

This is a function to prevent battery breakage due to voltage drop when using 2 cell Li-Po battery (7.4V).

When the battery voltage falls below 6.6V for 2 seconds, this product cuts output in the circuit and protects the battery.

Also, when the battery voltage again exceeds 6.6V, output resumes automatically.

?Safety using for Engine car

This is have same safety function as like as previous product Electrical switch 2.

This product employs an electronic ON / OFF switch which has high durability against vibration and shock of the GP car, so it avoids the contact failure which could occur in the conventional slide switch, Supply is possible.The CPU remembers the current power state ON/OFF. It prevents the power supply from turning off due to poor contact of the connector by the vibration in the engine car or momentary or voltage drop at overload.

Note: Be sure to remove the battery after using and when storage.

Because, Circuit of products are using current when even power off.

So,if this situation are long time, battery will be over discharge and broken.

Contents

Switch Unit x1

Specifications:

#Input voltage: Minimum 5.0V/Maximum 10.0V

#Instant maximum current: 14.0A

##Continuous maximum current: 8A

## Current by self consumption: Maximum 1mA in standby.

(when all of 7 segment LED lights maximum 10mA)

#Dimensions: 39.2x17.5x9.5mm(Excluding protrusions)

#cable length(input/Battery): 80mm

#cable length(Output/Receiver): 180cm

#Weight: 10.0g

Made in Japan
