LRP X22 MODIFIED MOTOR 7.0T

LRP - X22 Modified 7.0T

The LRP X22 Modified brushless motor series is a powerful addition to the high-end motor line. Developed for hardest competition in 1/10 scale applications, its advanced technology is proven under the toughest racing conditions and stands out with its combination of power, reliability and precise driving feel. Designed for maximum efficiency and performance, every detail of the X22 series is engineered to meet the highest demands in professional racing.

The precision-machined aluminum housing features maximized cut-outs and additional openings on the flat surfaces to increase the cooling surface and improve airflow - ensuring low operating temperatures even under extreme load conditions with consistent performance.

The distinctive matt black anodizing and X22 engraving make it a perfect match for any competition chassis.

The adjustable and optimized timing range from 14.5° to 34.5° allows for the most precise timing settings in modified racing, enabling refined drivability and setup options.

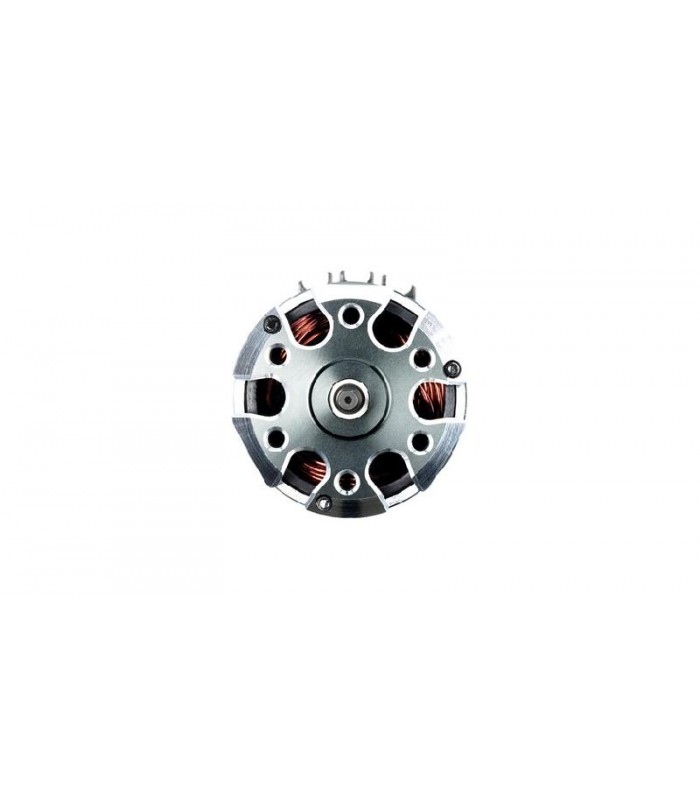

The motor includes a dual-axis balanced sintered rotor with a shaft design that offers a longer mounting surface for improved mechanical stability. All internal components are optimized for maximum efficiency and vibration-free operation. It features dual compact and precision 4x10x4mm bearings for performance and durability, as well as an updated multi-layer PCB with reduced resistance.

LRP s unique waterproof PreciSensor system ensures accurate sensor operation with any speed controller - and offers additional advantages when used with LRP speed controllers.

The X22 motor series is built in full compliance with IFMAR, ROAR, EFRA, FEMCA, JMRCA, BRCA and DMC regulations.

Features

New Air Vent Design - Increased cooling surface and openings for maximum heat dissipation, air-flow and lightweight design

New modified specific timing range - 14.5°-34.5° timing range for smoother power delivery

Competition racing stack - Highest grade materials for most efficient current flux and improved driving feel

X22 rotor specification - Highest grade magnet material with new shaft preparation for maximum performance, strength and reliability

Military quality black anodizing

2017 specification powerboard

IFMAR World Championship winning performance

New shaft with longer mounting surface

New optional aluminium endplate

Dual axis balanced rotor

Waterproof Precisensor System

Machined 7075-T6 housing

Optimised racing stack

Improved power delivery and efficiency

Technical data

TypeBrushless, sensored

Input Voltage3.7 - 7.6V

WindingStar (Multistrand Copper Winding)

Shaft diameter3.17mm

Rotor diameter12.5mm

Motor diameter35.9mm

Motor length50.8mm

Weight161g (+/-2%)

HomologatedIFMAR, ROAR, EFRA, FEMCA, JMRCA, BRCA, DMC
