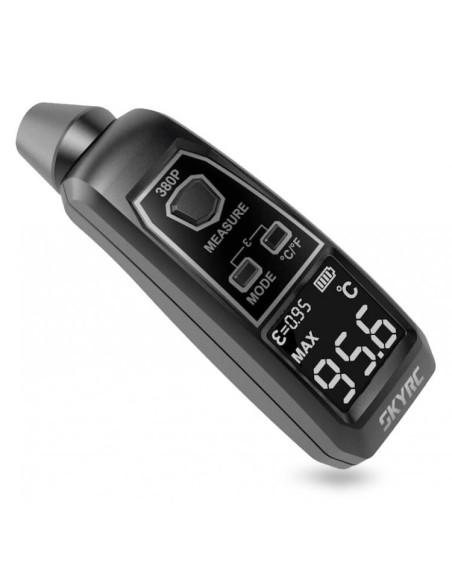

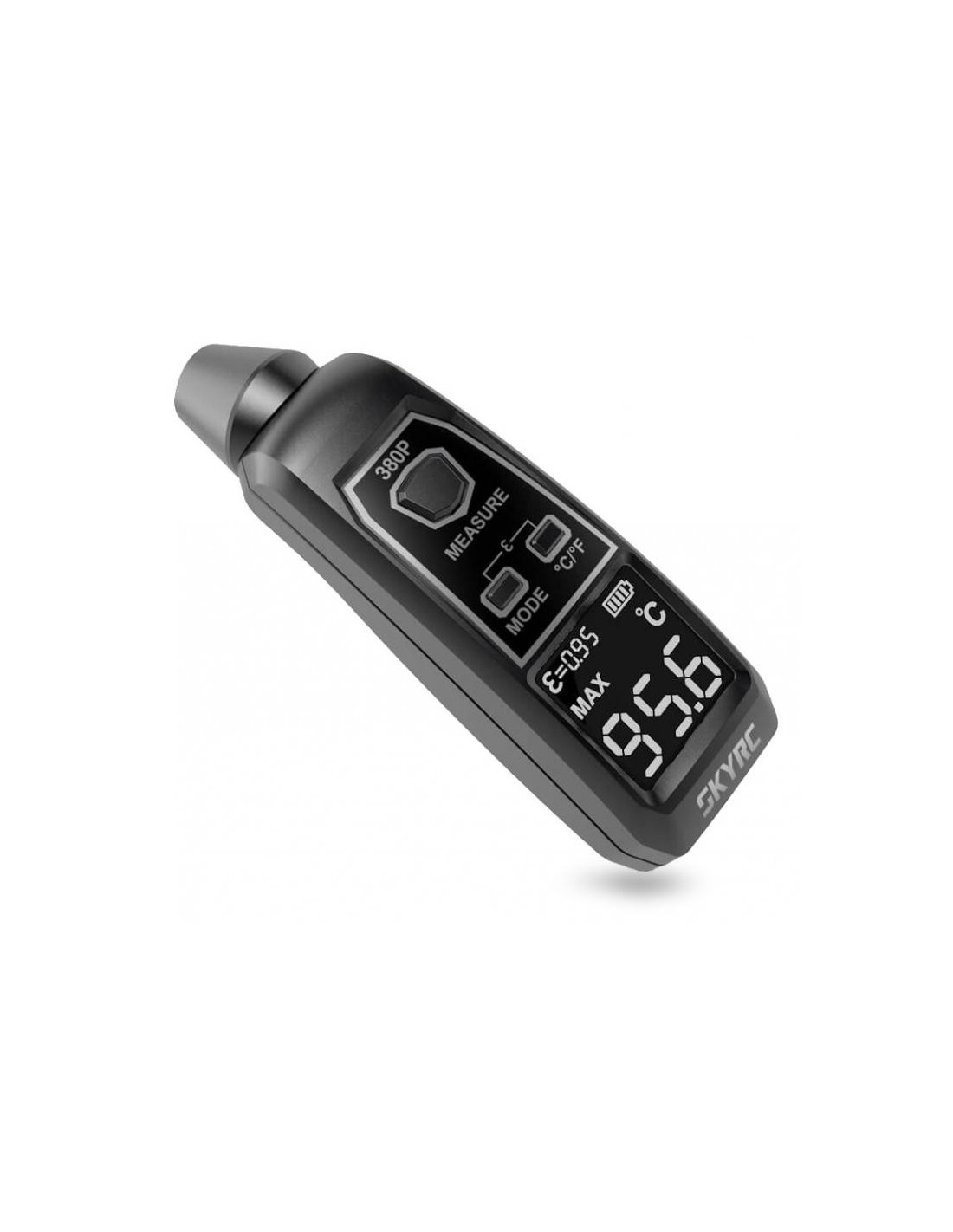

SKYRC INFRARED THERMOMETER ITP380

Infared Thermometer ITP380 SkyRC

The new SkyRC IR thermometer is a must-have for RC hobbyists to track the temperatures!

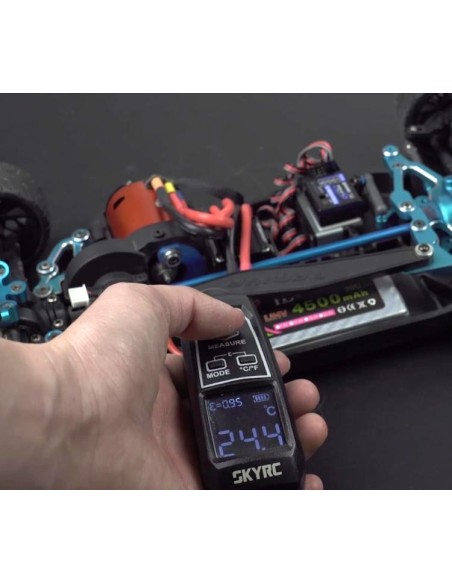

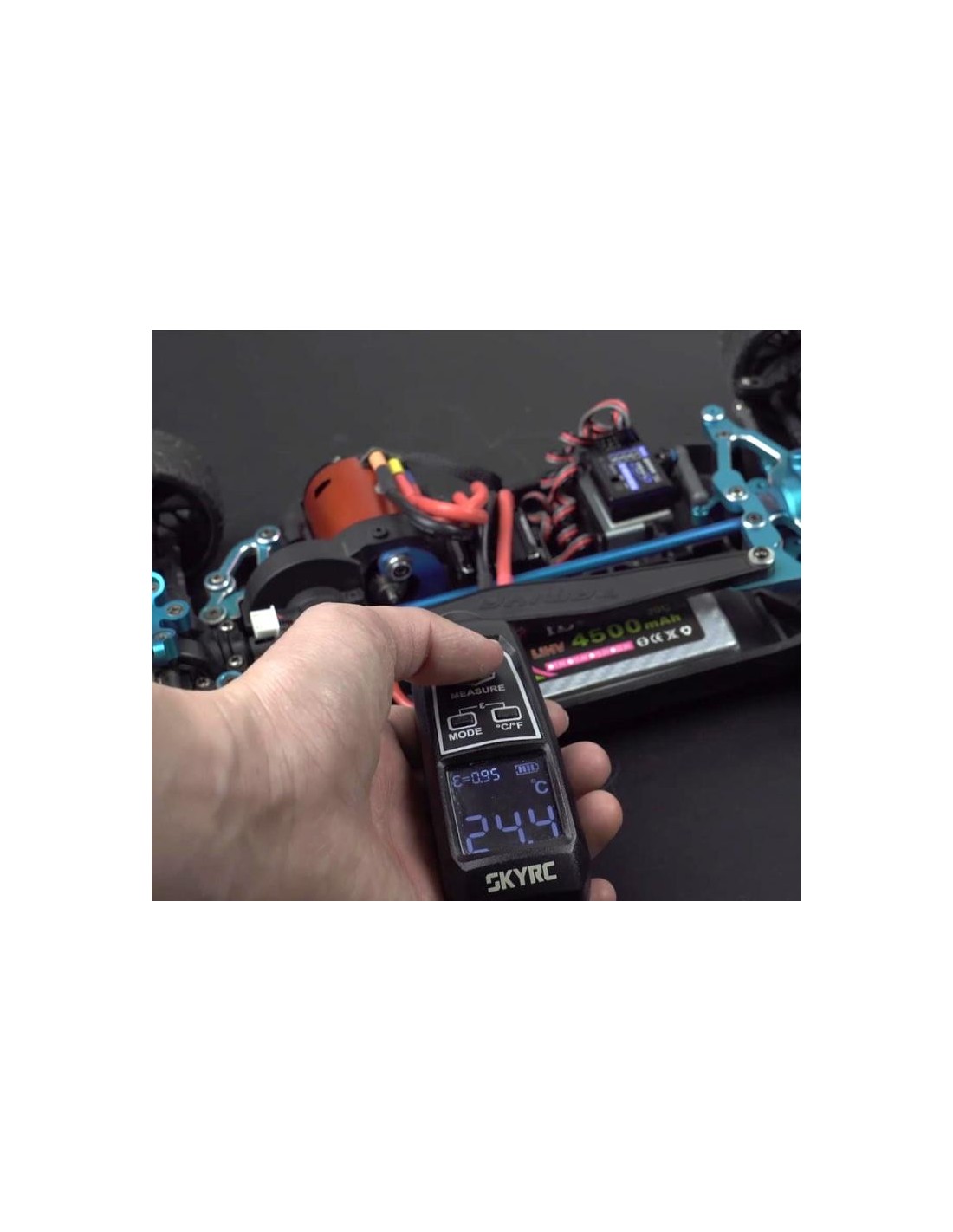

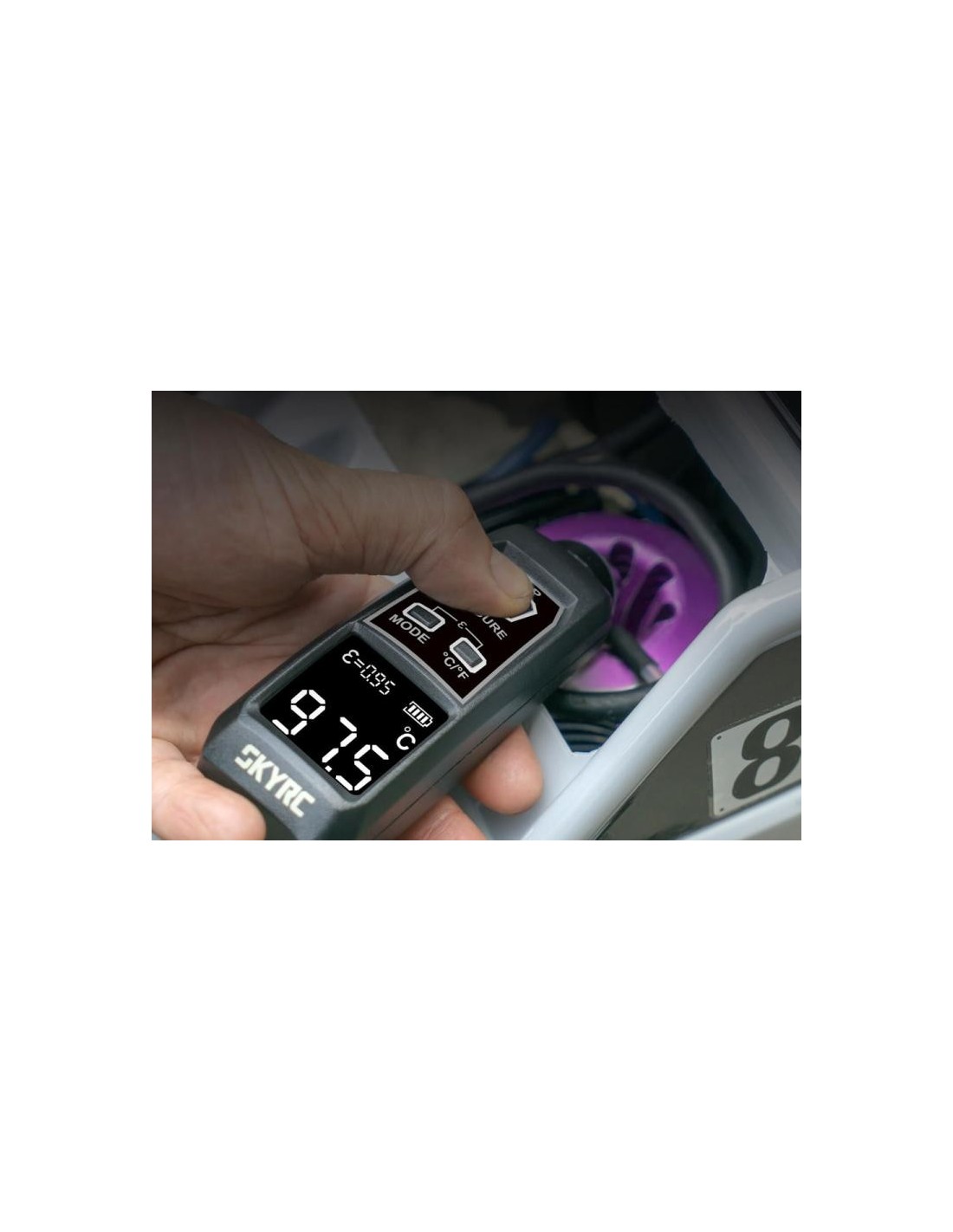

Now you can take temperature measurement at a safe distance with SkyRC ITP380. RC hobbyists will never get burned or air blowing in your face from the RC vehicles, engines, motors, chargers, etc., while taking measurements.

You can trust SkyRC ITP380 to get accurate temperature readings from a safe distance, wherever indoor or outdoor.

SkyRC has engineered the ITP380 temperature measuring with accuracy down to the 0.1 °F and the object temperatures ranging from -40°C to 380°C.

ìm Accuracy

Compared to its predecessor, SkyRC deploys a classic TO-46 housing thermopile sensor. The thermopile sensing element, composed of 116 elements of small thermocouples with an active area of diameter 545 ìm on a silicon chip, absorb the energy and produce an output signal. It provides nearly Johnson-noise-limited performance, which can be calculated by its ohmic series resistance.

Distance-to-Spot Ratio 6:1

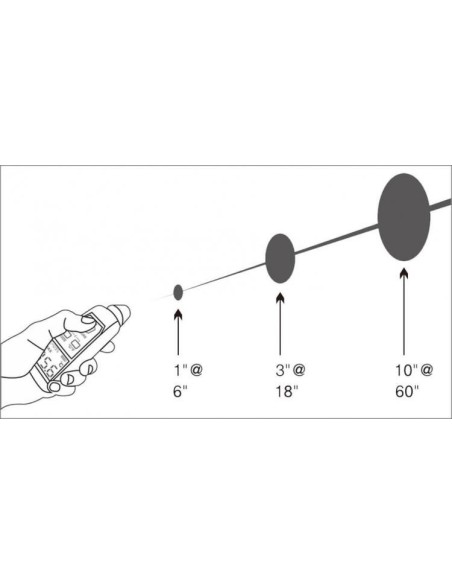

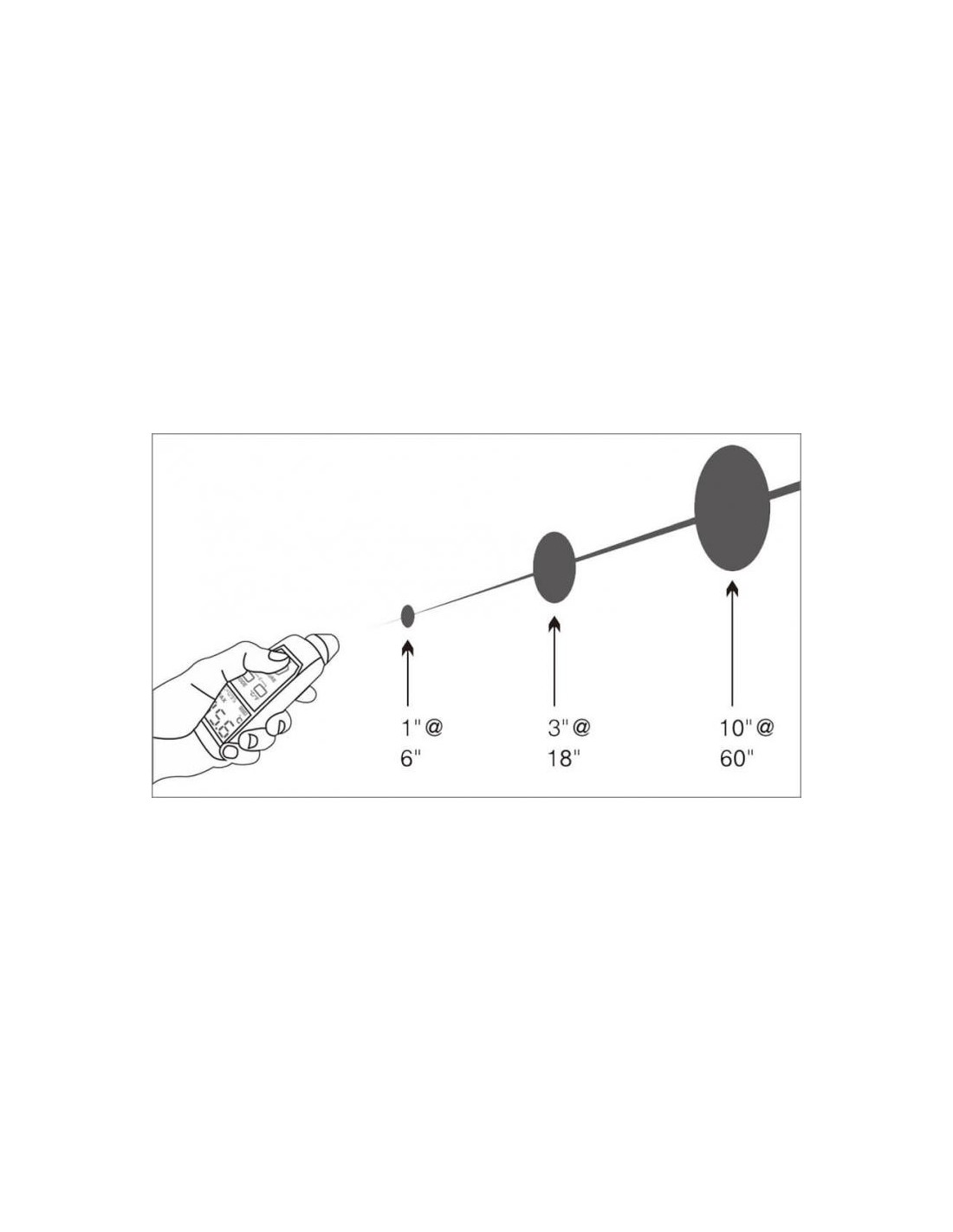

Every infrared thermometer has a "distance-to-spot" (D:S) ratio that tells you the diameter of the area being measured compared to the distance from the target.

The 380P thermometer has a distance-to-spot ratio of 6:1. That means it measures an approximately one-inch-diameter spot when it's 6 inches from the target (about 2.5 cm at 30 cm).

It means ITP380 thermometer can accurately measure targets at greater distances compared to many other thermometers;

Distance-to-spot ratio is crucial to measuring! So be sure to measure at this D:S ratio.

Quick and Accurate Readings

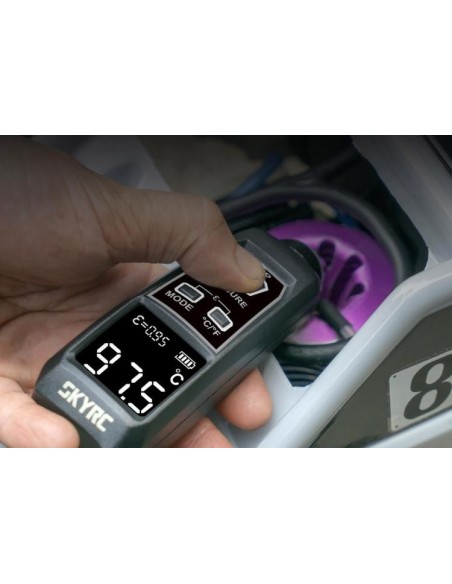

Point, aim, tap: three steps to get accurate readings on the go within 1 second.

Low-battery Indication Auto-power Off

The thermometer display will indicate whenever low on battery. It will automatically power off after inactivity of 60 seconds. Battery life is extended!

Versatile for The Hobby, Craft and Household

Note: ITP380 thermometer is not intended for human body temperature measurement, neither for animals.

Multiple Emissivity Coefficients

The emissivity coefficient indicates the radiation of heat. For some products, the emissivity coefficients varies with the temperature.

As a professional infrared thermometer, SkyRC ITP380 can be adjusted for different emissivity coefficients depending on the material to achieve the best measurement.

SURFACE MATERIAL - EMISSIVITY COEFFICIENT

Anodized Aluminum: 0.77

Plastics: 0.91

Rubber, hard glossy plate: 0.94

Carbon pressed filled surface: 0.98

Specs:

Dimension: 121x40x39.6mm

Weight: 75g

Operation Voltage: 2x AAA battery

Operation Current: ≤40ma @ 3.0V

Operation Temperature: 0-50℃

Current Drain: ≤25ua @ 3V

Precision:

-40-0℃: +/-1.5℃

0-380℃: +/-1.5℃

Adjustable Range for Infrared Emission Frequency: 0.01-1
