Kit Chasis Tamiya TT-02R
Chasis Tamiya TT-02 que incluye una serie de piezas opcionales como soporte de motor en aluminio, eje pricipal de transmisión en aluminio, set completo de rodamientos, amortiguadores de aceite, tirantes opcionales, manguetas traseras de 3º en aluminio, vasos de rueda opcionales. etc.
Kit de montaje de chasis completo.
No incluye : Emisora y receptor, servo de dirección, batería, variador, motor, cargador, carrocería ni pintura para la carrocería.
TAMIYA RC TT-02R CHASSIS KIT
This variant of the efficient 4WD TT-02 chassis includes a range of option parts, allowing you to compete at the spec level with greater versatility! Aluminum rear uprights give 3-degree toe-in for more stable cornering, while an aluminum motor mount makes for greater rigidity and enhanced heat dissipation. A highly reliable drivetrain employs full ball bearings, aluminum propeller shaft and center cups, plus metal drive shafts and joint cups. Suspension is fitted with CVA oil dampers and black coil springs; they provide superior cushioning and improved traction. The kit also includes a TT-02 high speed gear set (68T).
Featured Hop-Up-Options
54733 Aluminum Rear Uprights (3-Degree Toe-In)
54501 TT-02 Aluminum Propeller Shaft
Medium-Narrow Racing Slick Tires
Metal Drive Shafts, Wheel Axles and Gearbox Joints
5mm Aluminum Short Ball Connector Nuts (Blue)
54558 Aluminum Motor Mount
54476 TT-02 Full Ball Bearing Set
5mm Ball Connectors
54502 TT-02 Alu. Propeller Joints
3x18mm Alu. Turnbuckle Shafts
CVA Oil Dampers & Springs
4mm Aluminum Flange Lock Nuts (Blue)
5mm Aluminum Ball Connectors (Blue)

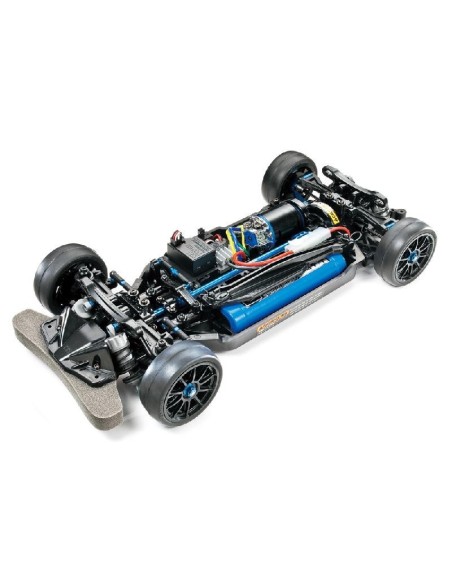

1/10 scale R/C chassis assembly kit. Length: 376mm, Width: 182mm.

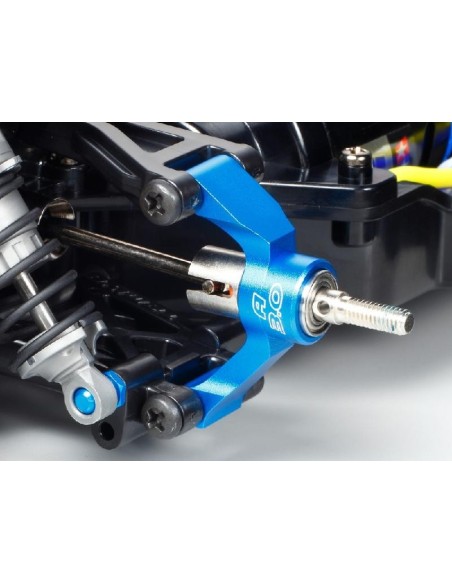

Aluminum rear uprights provide 3 degrees of toe-in for greater stability when cornering.

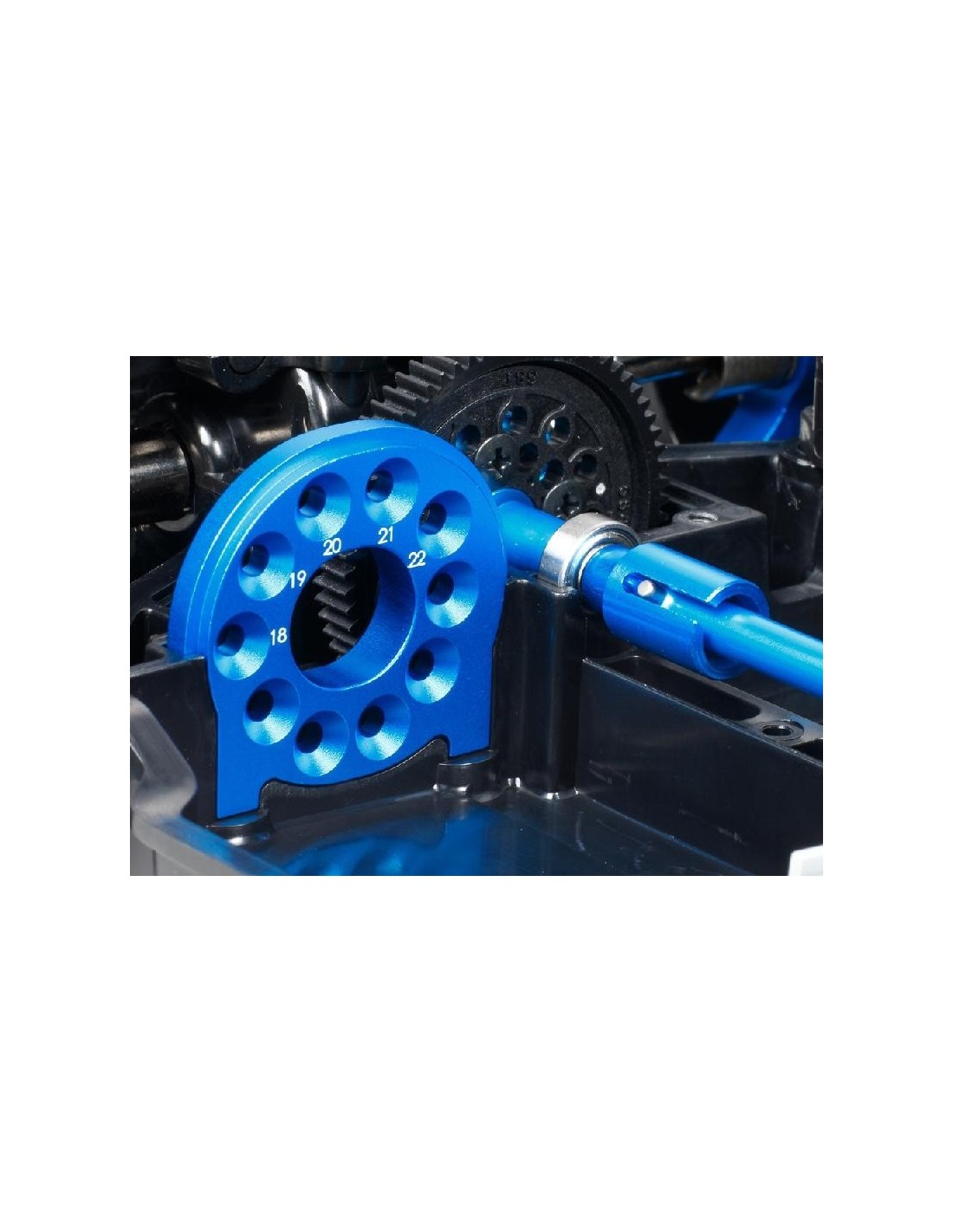

Aluminum motor mount, propeller shaft and joints included.
A highly reliable drivetrain employs full ball bearings, aluminum propeller shaft and center cups, plus metal drive shafts and joint cups.

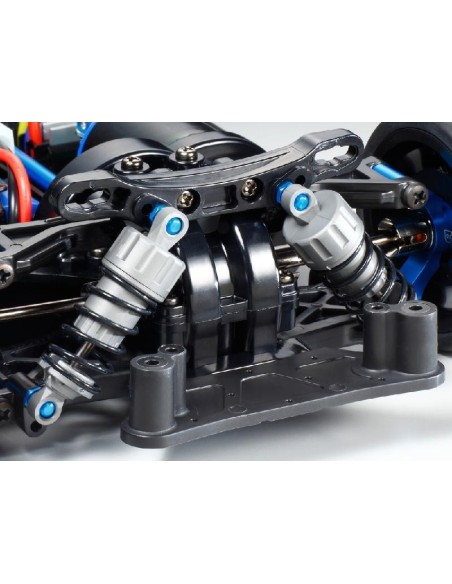

Suspension is fitted with CVA oil dampers and black coil springs; they provide superior cushioning and improved traction.
Comes with 10-spoke wheels and slick tires.
Required to complete: Body, battery pack, motor, ESC, 2-channel radio and servo.
SPECIFICATIONS
Adjustable Gear Ratio Yes
Bearings Includes full ball bearings
Chassis Material ABS Plastic
Chassis Type TT-02R
Construction Type Assembly Kit
Differential Type Gear
Drive Type 4WD
Electronic Speed Control (esc) Sold Separately
Motor Sold Separately
Required To Complete 2-channel radio, steering servo, ESC, 190mm touring car body set, and 7.2-7.4volt battery & battery charger
Scale 1/10
Shock Damper CVA Oil Filled
Suspension Fully Independent Double Wishbone
Terrain Use On-Road
