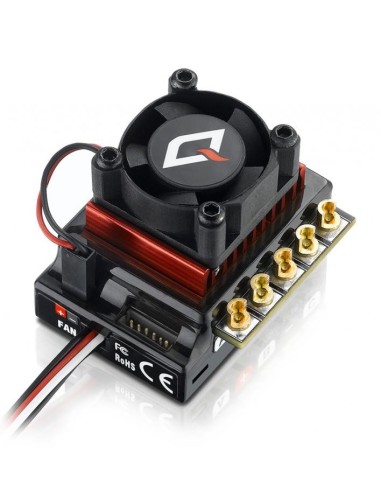

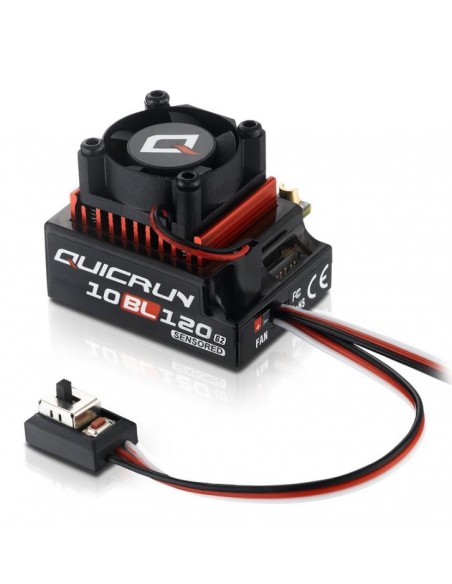

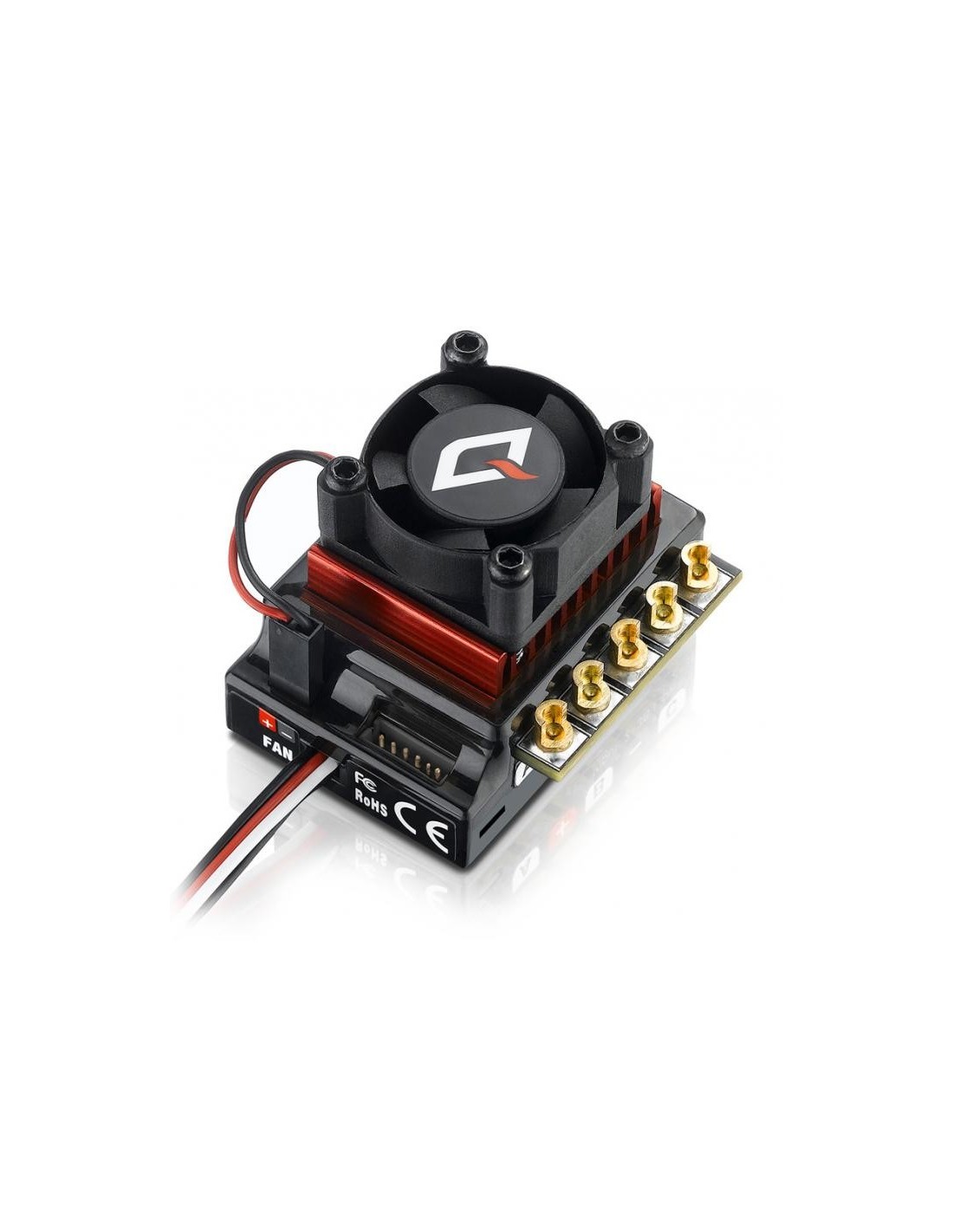

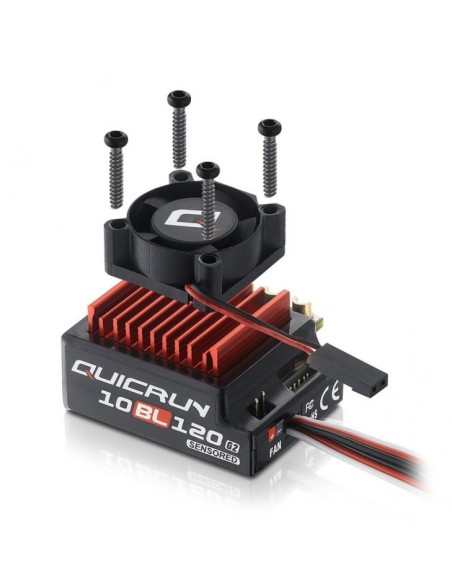

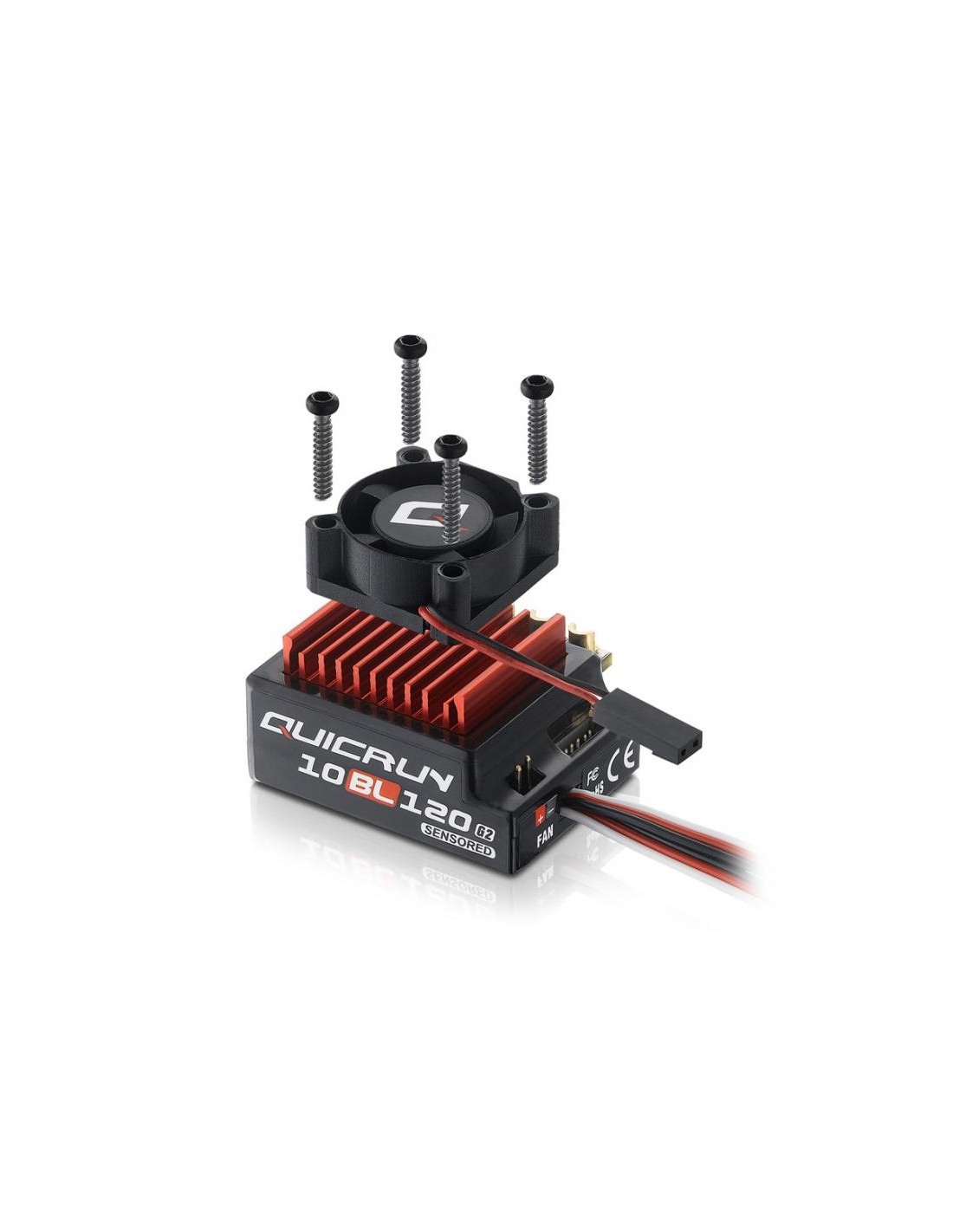

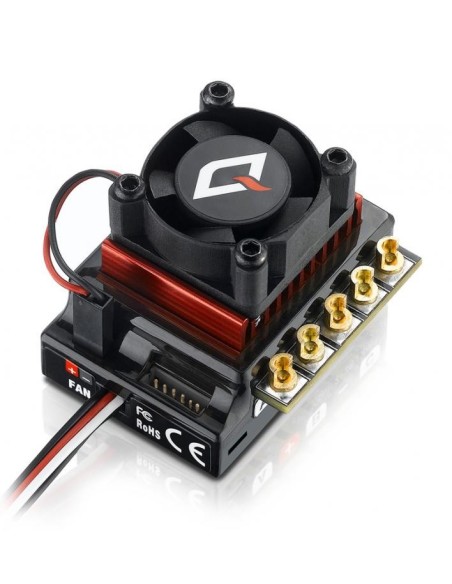

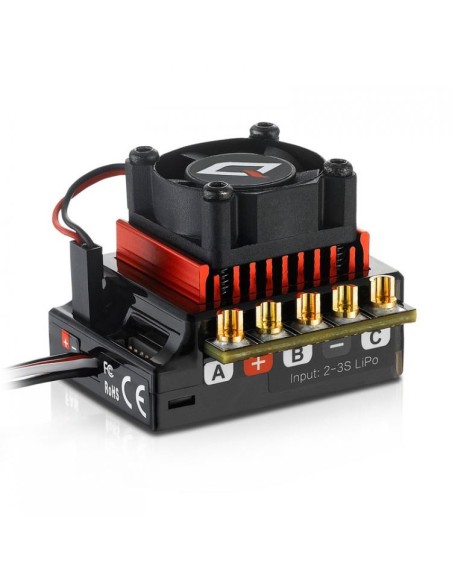

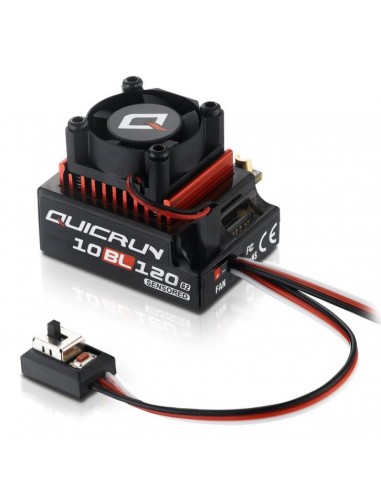

HOBBYWING QUICKRUN 10BL 120 G2 ESC



Variador Hobbywing QuickRun 10BL120 G2 Brusless 1/10.



Hobbywing
















Más detalles

30125002
Nuevo producto

55,90 €

Este producto ya no está disponible

Añadir para comparar

Compartir


Más detalles



Hobbywing QuicRun 10BL120 G2 Sensored ESC 2-3S Car 1/10



Best value for money, Easy to use

The new 10BL120 G2, takes the outstanding quality and durability of proven HOBBYWING platforms and makes it even easier to use and setup. The perfect choice for 10th scale setups.



Upgraded BEC

The BEC's continuous output current has been upgraded from 3A to 4A. The maximum current is at 7A, and the output voltage is now 6V/7.4V adjustable. Hobbyist will be able to use high-voltage and powerful servos available on the market with greater control.



Boost/Turbo timing technology

The 10BL120 G2 features adjustable electronic timing. Turbo and Boost can be used to fine tune power delivery and get the most out of your setup. Up to 32 degrees of electronic timing is available.

Note: Boost and Turbo timing cannot be used with a 3S battery to prevent damage.



Multiple programming/tuning methods are supported

Works with the Multifunction LCD programming Box Pro, The Multifunction LCD Programming Box (Non pro), the LED Programming Box, and has on board button/led tuning.



Specs:

Type: 1/10 Brushless & Sensored ESC

Waterproof: No

Cont./Peak Current: 120A/760A

Input Voltage: 2-3S LiPo

BEC Output: Switch Mode 6V/7.4V @ 4A

Input Wires: 12AWG-200mm

Output Wires: 12AWG-200mm

Input Connectors: No

Output Connectors: No

Fan Size: 25x25x10mm

Fan Output Wires: 5-8.4V

Fan Input Connectors: Powered by BEC

Firmware Upgrade: Not Supported

Size: 43x36.8x32.3mm

Weight: 101.5g

Motors: Sensorless / Sensored Brushless Motor

Vehicles: 1/10 Touring, Buggies & Drift Cars

KV Rating/T Count: 2S Lipo ≥4.5T, 3S Lipo ≥10.5T - 3650 Size Motors



ESC Programing via:

SET Button on ESC: Supported

LED Program Box: Supported

LCD Pro Program Box: Supported

OTA Programmer: Not Supported

Program Port: Separate Program Port
