Servo SRT DL5020 LV
Recomendado para escala 1/10 RTR. Digital, Piñonería metálica.
Velocidad a 6,0V: 0.16 seg/60º
Potencia a 6,0V: 20.0 Kgrs.
Dimensiones: 40.7x20.5x39.5mm
Peso: 62.0 grs.

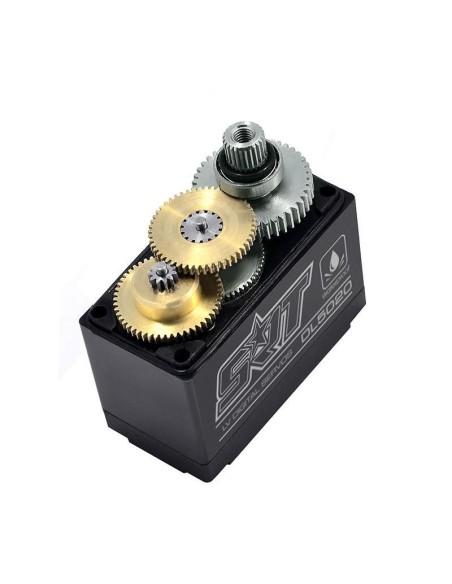

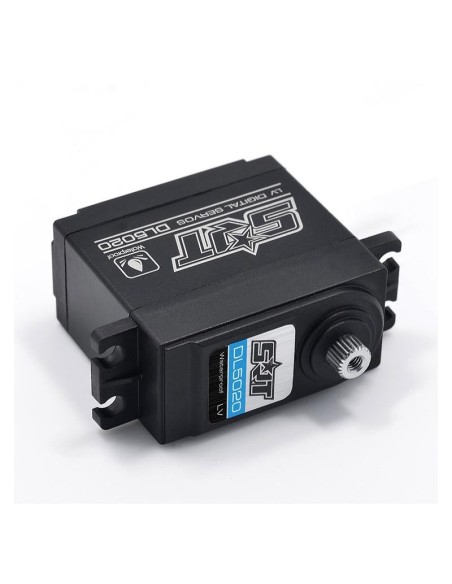

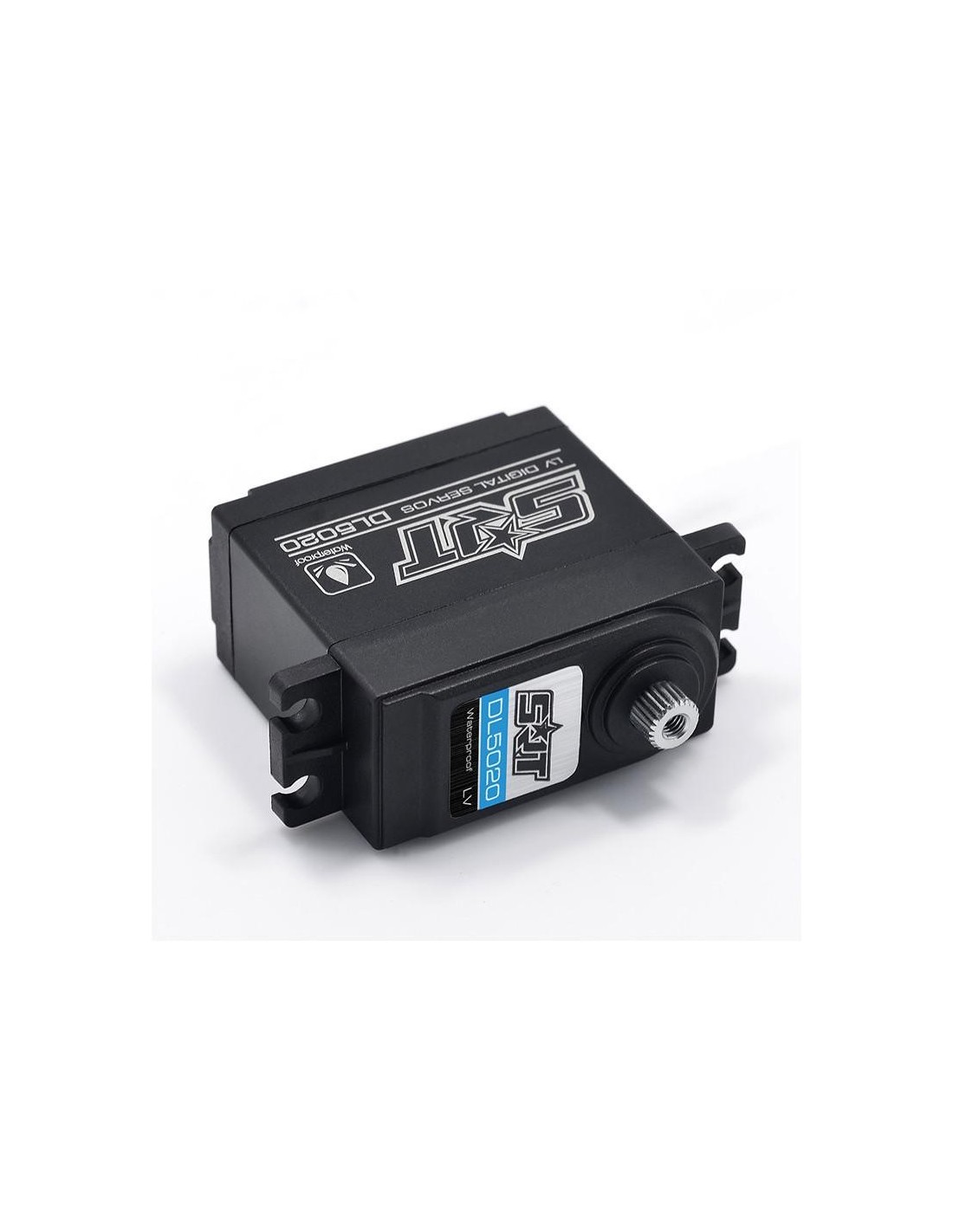

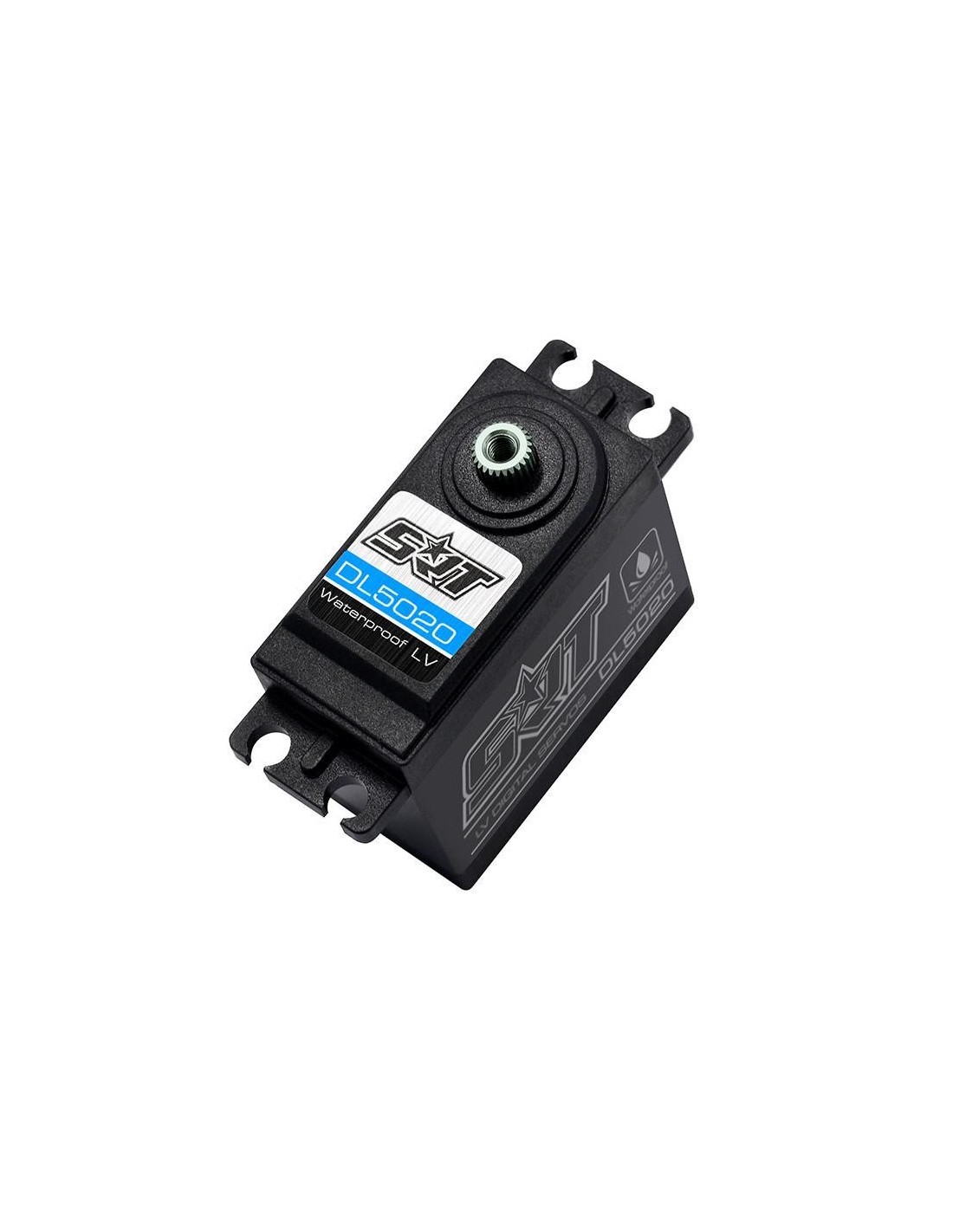

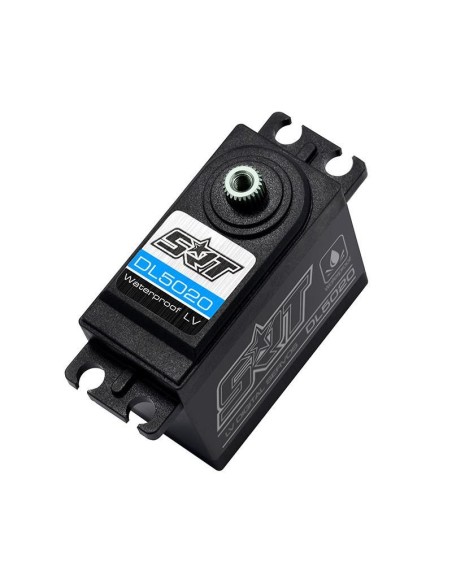

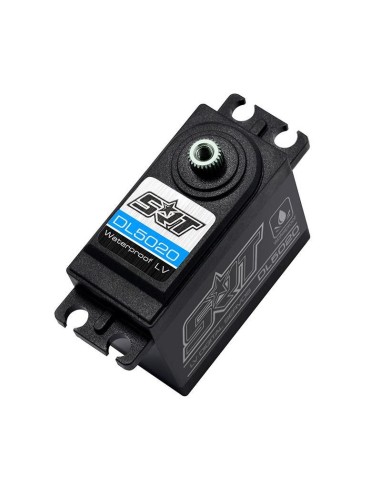

SRT DL5020 LV Digital Waterproof Servo
KEY FEATURES
& Ideal for 1/10 on road and 1/8 off road scale applications
& Intermediate aluminum case
& NMB dual main bearings
& Superior waterproof
& 25T output shaft
& 1-Year Limited Warranty
Application :
1/10 On-road, 1/10 Off-road, 1/8 On-road, 1/8 Off Road, Electric Boat
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: DC

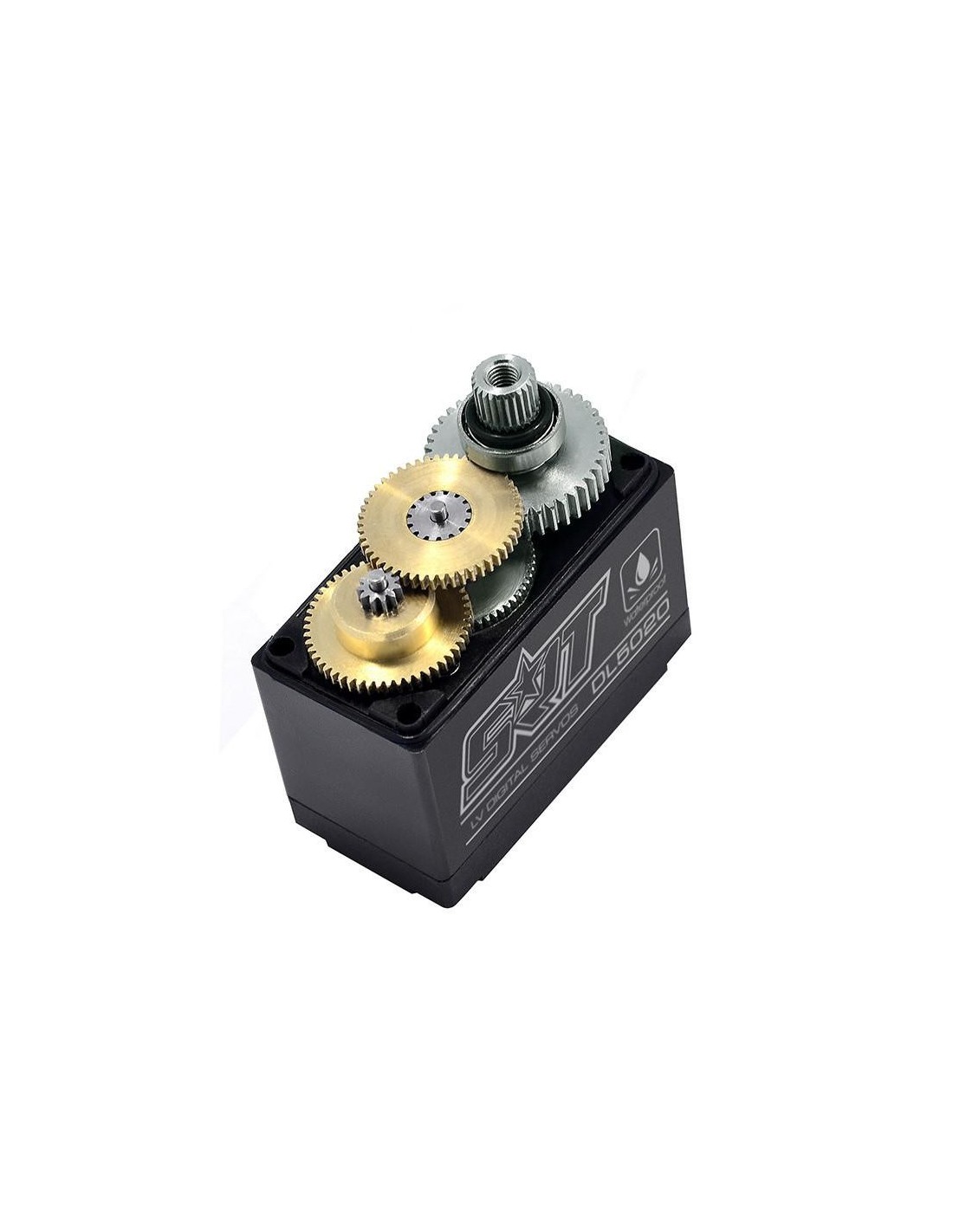

Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520ìs / 330hz
operating voltage: dc4.8-6.0v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.18 sec/60 degrees at no load
operating speed (6.0v): 0.16 sec/60 degrees at no load
stall torque (4.8v): 16.5kg.cm (229.1 oz/in)
stall torque (6.0v): 20.0kg.cm (277.7 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
weight: 62.0g (2.19 oz)
connector wire length: jr 300 mm
SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle Air PlaneBoatRobot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
