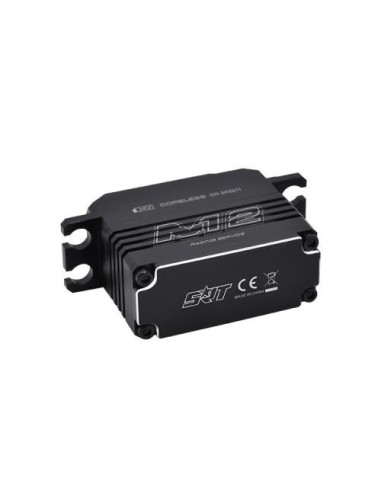

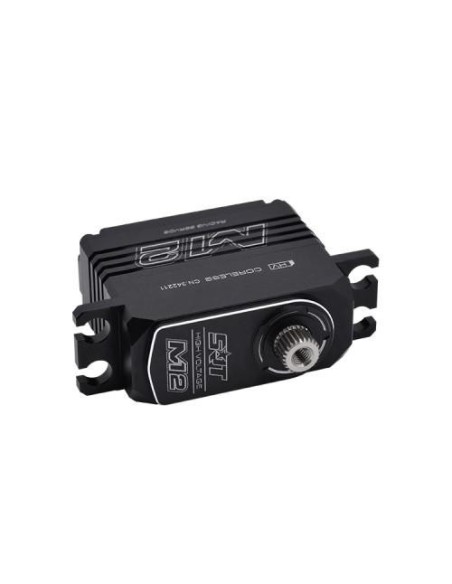

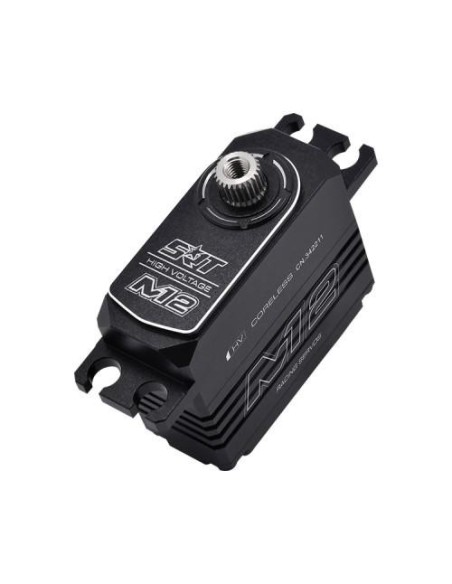

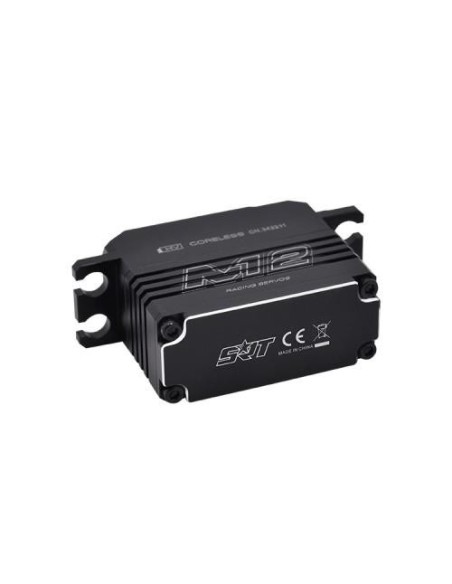

Servo SRT M12 de caja metálica y alto voltaje.
Recomendado para escala 1/12 competición. Digital, Coreless, Piñonería metálica. 6.0-8.4V.
Velocidad a 8,4V: 0.065 seg/60º
Potencia a 8,4V: 11.0 Kgrs.
Dimensiones: 35.0x15.1x25.5mm
Peso: 35.0 grs.
SRT M12 1/12 HV METAL CASE 11KG 0.065S. CORELESS SERVO
PRODUCT SPECIFICATIONS:
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Copper & Aluminum
Control system: pulse width control
Working frequence: 1520ìs / 333hz
Operating voltage: dc6.0-8.4v
Ooperating temperature range: -10 to + 60 degree
Operating speed (6.0v): 0.08 sec/60 degrees at no load
Operating speed (7.4v): 0.075 sec/60 degrees at no load
Operating speed (8.4v): 0.065 sec/60 degrees at no load
Stall torque (6.0v): 6.5kg.cm (90.3 oz/in)
Stall torque (7.4v): 9.5kg.cm (131.9 oz/in)
Stall torque (8.4v): 11.0kg.cm (152.8 oz/in)
Potentiometer drive: direct drive
Dimensions: 35.0x15.1x29.5mm /1.38x0.59x1.16 in
Weight: 35.0g (1.23 oz)
Connector wire length: jr 180mm
