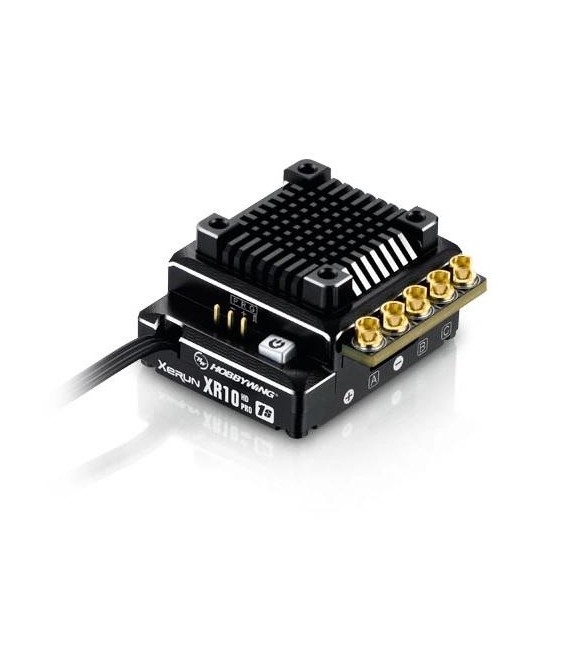

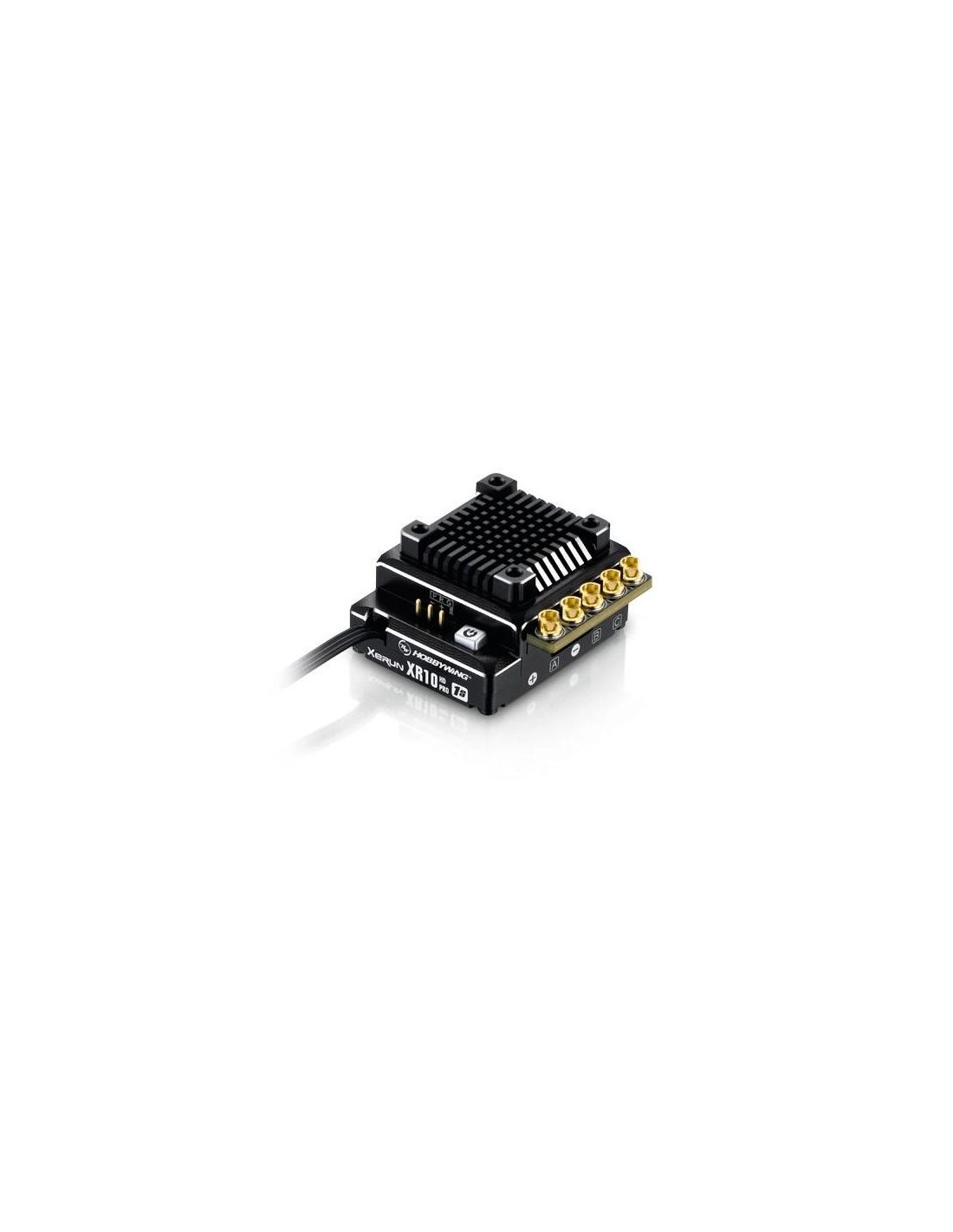

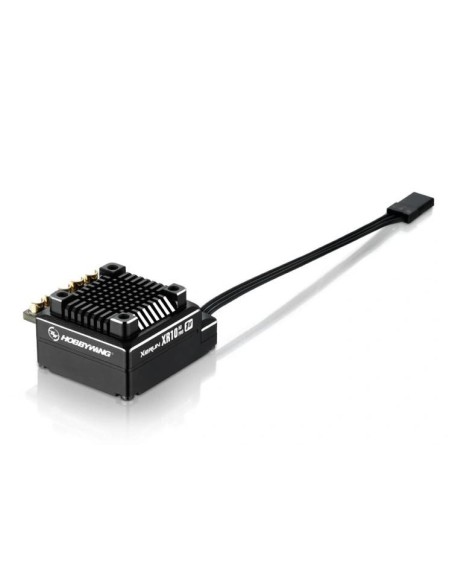

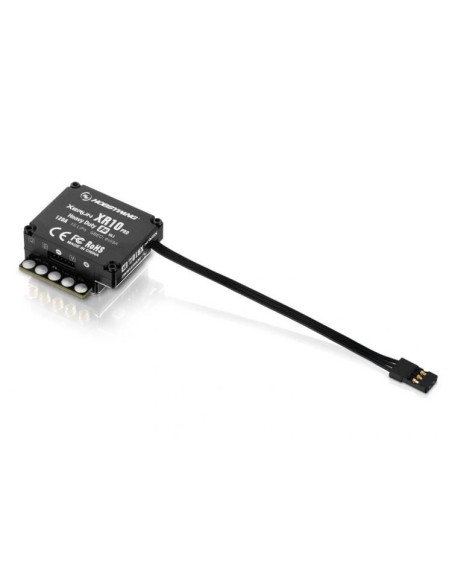

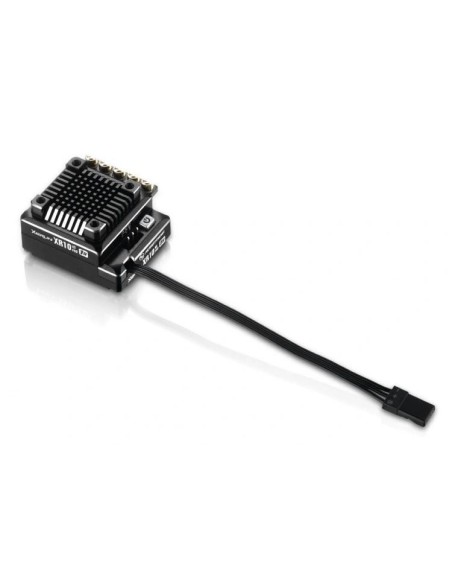

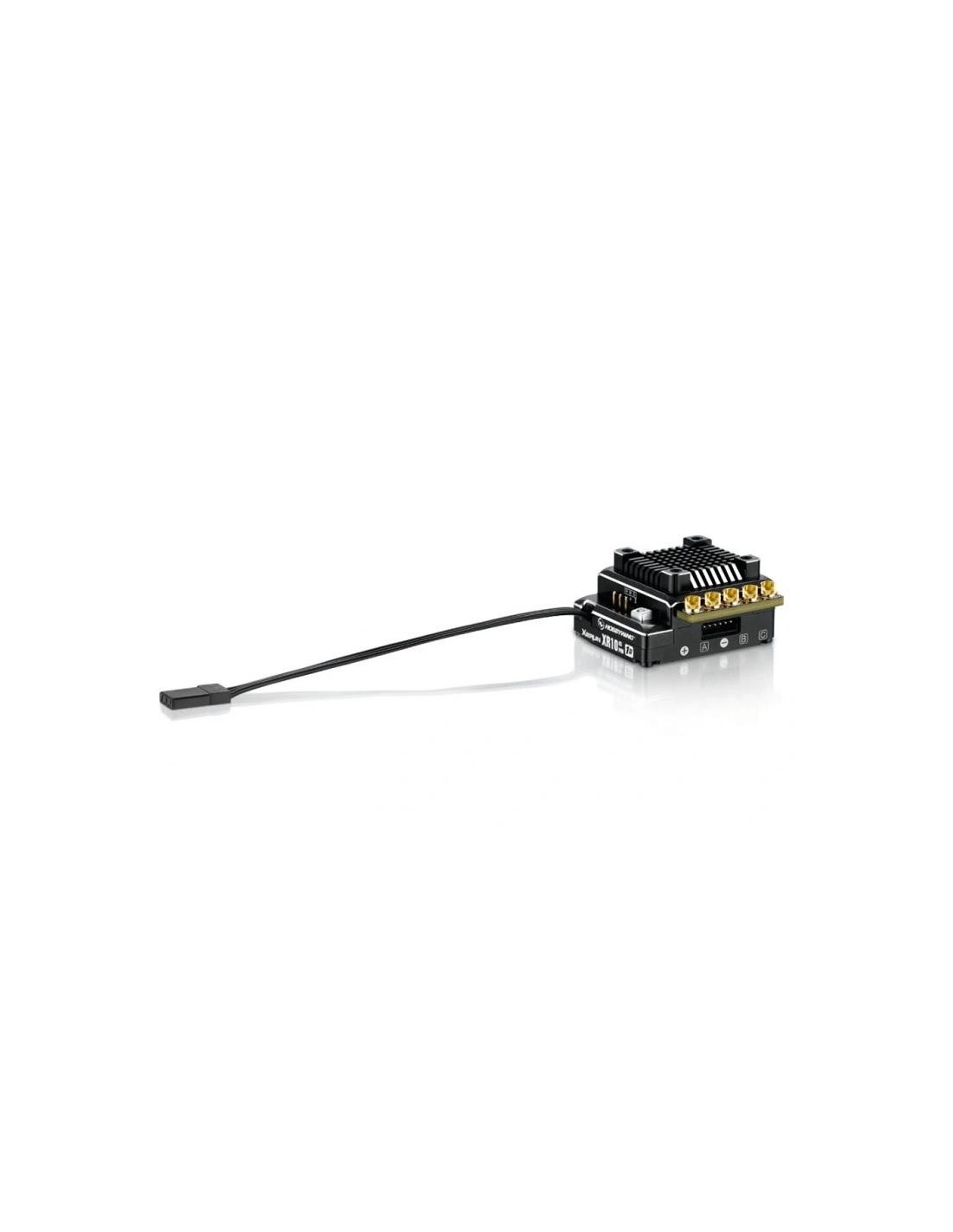

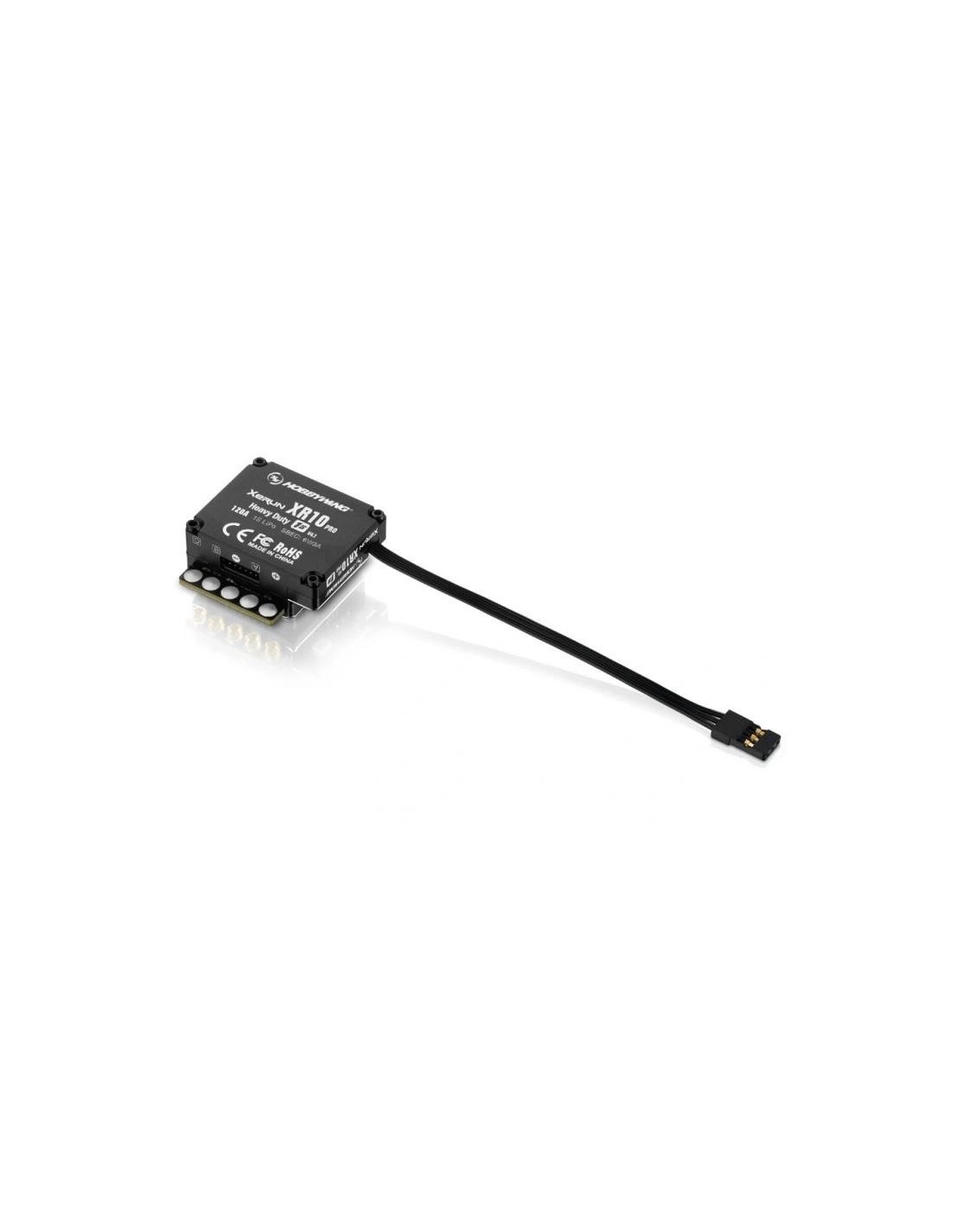

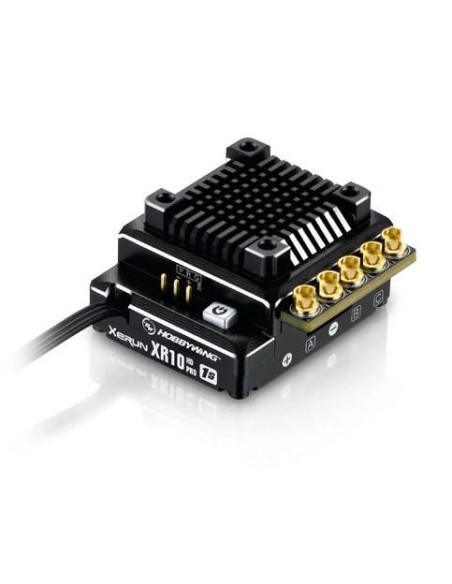

HOBBYWING XR10 PRO 1S 120A 1/12 ESC

Hobbywing XERUN XR10 PRO 1S 120A 1/12 ESC

Special Design for 1/12 th Scale Top Racing

Reliable hardware combined with great software (contains 5 common ready-to-use profiles) creates an ideal power solution to 1/12 th scale top touring car racing.

High reliable heat dissipation system

Internal power board covered with copper heat conducting confluence strip which is HobbyWing s patent technology. The strip is convenient for transferring the internal heat rapidly to an integrated shell radiator, together with a high-speed heat dissipation fan, which build a high reliability heat dissipation system, to ensure the ESC is always in the best state of heat dissipation.

Super BEC

Internal BEC features booster circuitry can output the current/voltage of up to 6A/6V and power various servos without connecting any extra receiver battery.

Built-in Electronic Switch & Capacitor Module

Built-in electronic switch (with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design) and capacitor module save space and make the wiring simple and neat.

Programming/Upgrading/Data Reading Wirelessly

With Hobbywing s WiFi Express module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.

Adjustable Throttle & Brake PWM Frequencies

Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control for all classes of competitions (especially the Stock class).

Separate Programming/Fan Port

The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LCD program box or WiFi module for ESC programming.

Innovative Data-logging Function

This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows users to check those data via a LCD program box to analyze.

Specifications:

Type: 1/12 scale on-road

Brushless / Sensored

Waterproof: No

Continuous /Peak Current: 120A/830A

Input Voltage: 1S Lipo/3-4 Cell NiMH

BEC Output: Switch Mode: 6V/3A

Wires & Connectors:

Input Wires: 12AWG/200mm

Output Wires: 12AWG/200mm & 14AWG/200mm

Input Connectors: No

Output Connectors: No

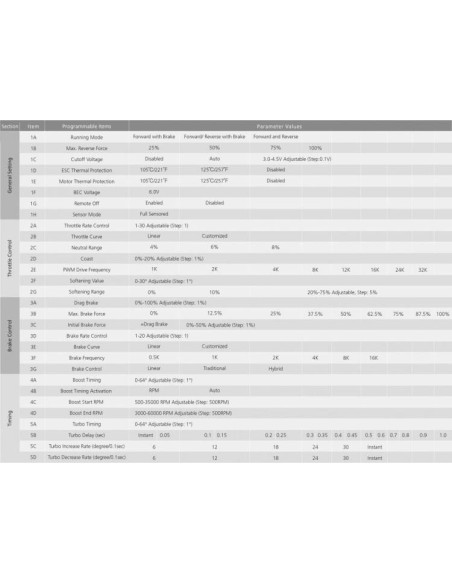

ESC Programing:

SET Button on ESC: Not Supported

LED Program Box: Not Supported

LCD Program Box: Supported

WiFi Module: Supported

Program Port: Separate Program Port

Firmware Upgrade: Supported

Size & Weight:

Size: 37.5 x 31 x 31 mm

Weight: 46.7 g

Applications:

Motors: Sensored Brushless Motors

Vehicles: 1/12 scale Pan Cars

KV Rating/T Count: 1S LiPo: ≥3.0T (* ESC in Zero-timing/Blinky Mode)
