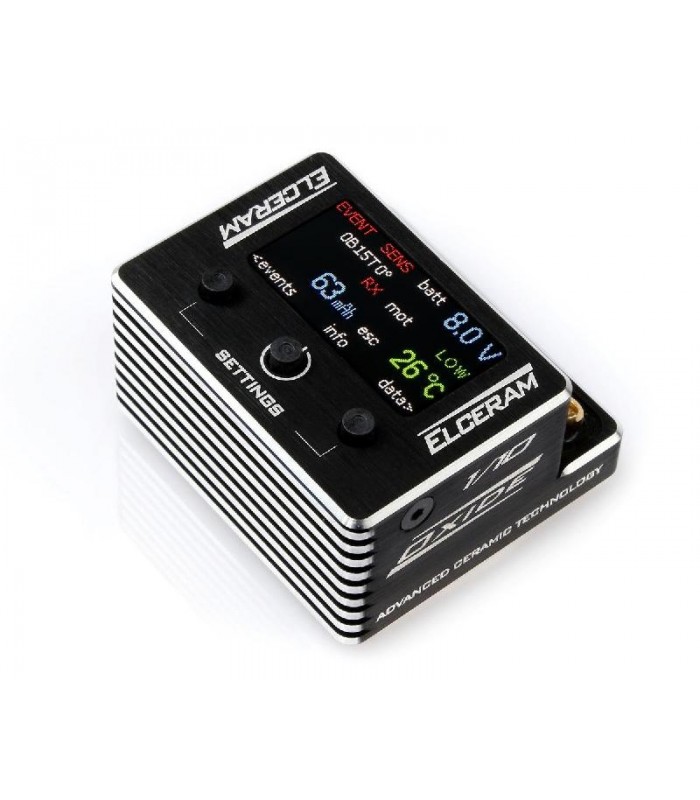

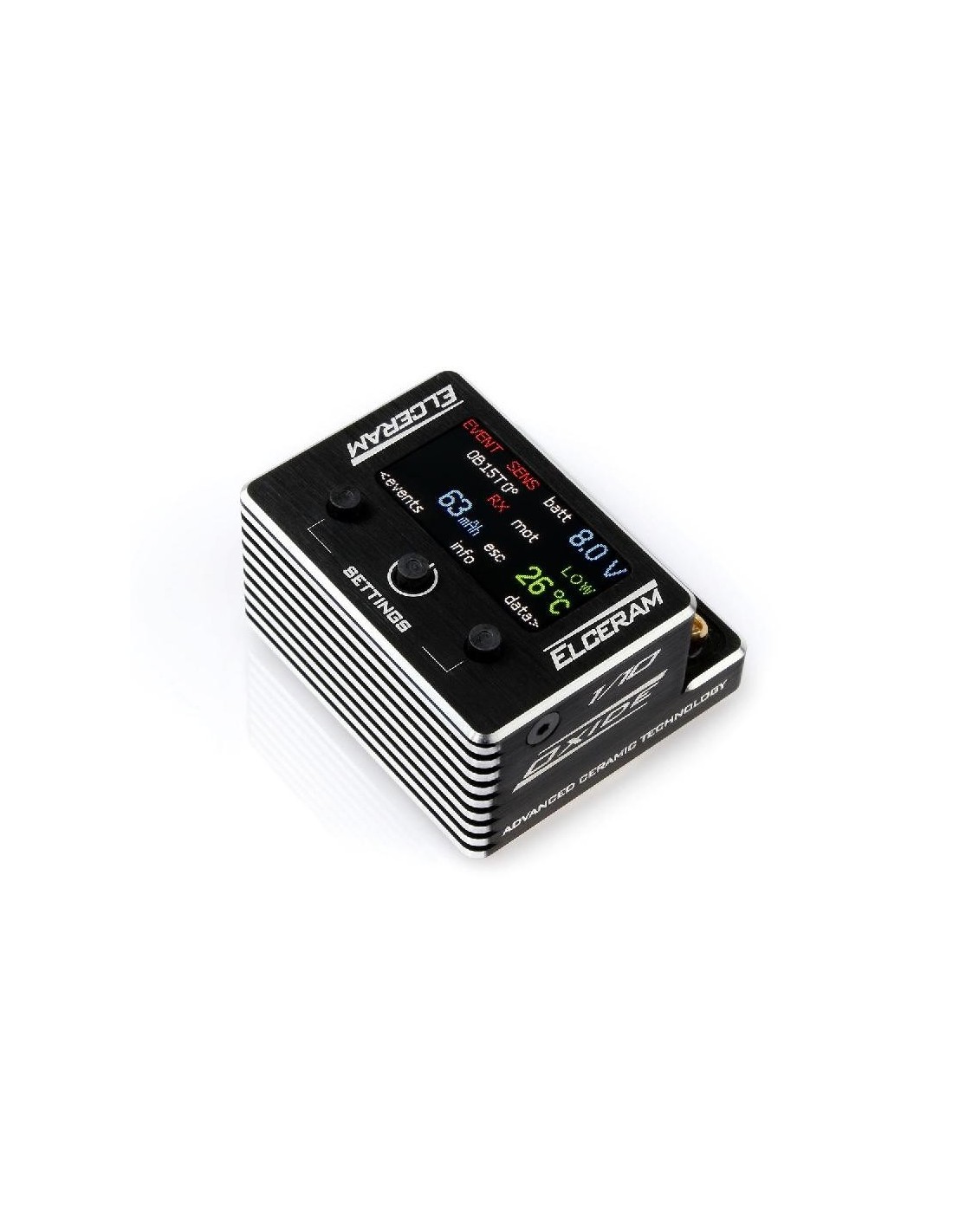

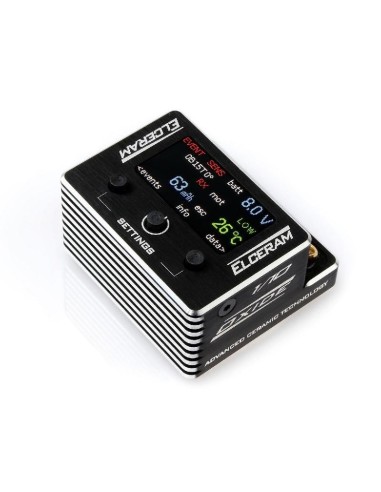

ELCERAM OXIDE 1/10 G2 ESC

ELCERAM Oxide 1:10 G2 Competition Brushless ESC

Elceram Oxide 1/10 G2 Competition Brushless ESC

The OXIDE 1/10 G2 is a next-generation electronic speed controller designed for sensored brushless DC motors. Using Advanced Cooling Technology based on an Aluminium OXIDE Ceramic cooler, the OXIDE 1/10 has excellent thermal conductivity and can be used with powerful motors from 6.0T up.

The OXIDE 1/10 G2 features revolutionary real-time monitoring of battery current and discharge, as well as innovative intelligent algorithms to protect the ESC in the event of motor failure or mechanical issues.

The OXIDE 1/10 G2 features reverse polarity protection.

The OXIDE 1/10 G2 has a matt-finish TFT colour LCD display, and no other interface is needed. Settings can be adjusted simply with the three buttons on the display.

Programmable parameters and functions:

Revolutionary simple Rx calibration.

Real-time monitoring of battery voltage, ESC and motor temperatures.

Revolutionary battery current and discharge monitoring.

Pre-race self-diagnosis of engine temperature, sensor cable and battery.

Post-race data analysis.

Easy programming of throttle, brake, boost and turbo timing, Hall angle and many other functions.

Race data logging: temperature, curves, histograms, etc. The data will be saved after switching off the ESC.

Adjustable maintenance reminder for easy checking.

No programming interface required.

Keay Features:

TFT LCD colour display with a matte finish and a resolution of 160 x 80 pixels. This allows you to set all the parameters and check all the data directly on your ESC without the need for a programming card or mobile application. Everything you need is inside your ESC. The three buttons allow you to quickly set everything you need, and a single view is enough to check all the necessary parameters for the race. Simple. Fast. Accurate.

Easy Check and Set . The display gives you an easy-to-check overview of all the important data and events before, during and after the race. You can quickly change your settings and receive instant feedback without the delay of connecting an external control interface.

Advanced Cooling Technology. OXIDE Advanced Cooling Technology featuring aluminium OXIDE heatsinks, which are specially developed for OXIDE and provide the ESC with excellent thermal conductivity and long-term resistance to high temperatures and loads. MOSFET transistors are cooled directly, with no additional thermal resistance layer! During production, ELCERAM uses very thick layers of special materials, such as silver and copper, to achieve very low internal resistance, as well as the latest technologies inspired by advanced power systems designed and manufactured by ELCERAM.

For even better cooling, the OXIDE 1/10 G2 features additional aluminium cooling fins and a connector for an intelligent fan, if needed under special conditions.

Reverse polarity protection.

Intelligent algorithms for ESC protection.

Dimensions - Despite having so many great new features, the OXIDE 1/10 G2 is really compact and even smaller than Generation 1. Its dimensions are suitable for all types of 1/10 RC car. Furthermore, 70% of the weight is on the underside of the ESC, providing your car with enhanced stability.

Easy installation - installation of OXIDE 1/10 is quick and easy it can be sticked to the chassis using double sided tape (included in the package).

In addition, the ESC cover with display and buttons can be easily replaced in the event of an accident.

Specification:

Type:

Scale: 1/10th On road and Off road, Stock, Open Stock, Modified, Drift and other categories

Brushless

Sensored

Waterproof: NO

Polarity protection: YES

Relevant parameters:

Cont./Peak Current: 160A/1500A

Input Voltage: 2S LiPo

BEC Output fixed voltage: 6.0 - 7.4V

BEC current Cont. / Peak: 6A/12A

Size and weight:

Width: 34 mm

Length: 36.5 mm

Height: 20 mm

Weight: 50 g without wires

BEC cable length: 180 mm, grey stripe indicates minus pole

Applications:

Applications: Sensored Brushless DC Motors from 6.0T up

Vehicles: 1/10th Touring and Buggy and other cars.

Zero Timing (Blinky Mode) supported.

External capacitors are needed and are included in the package.
