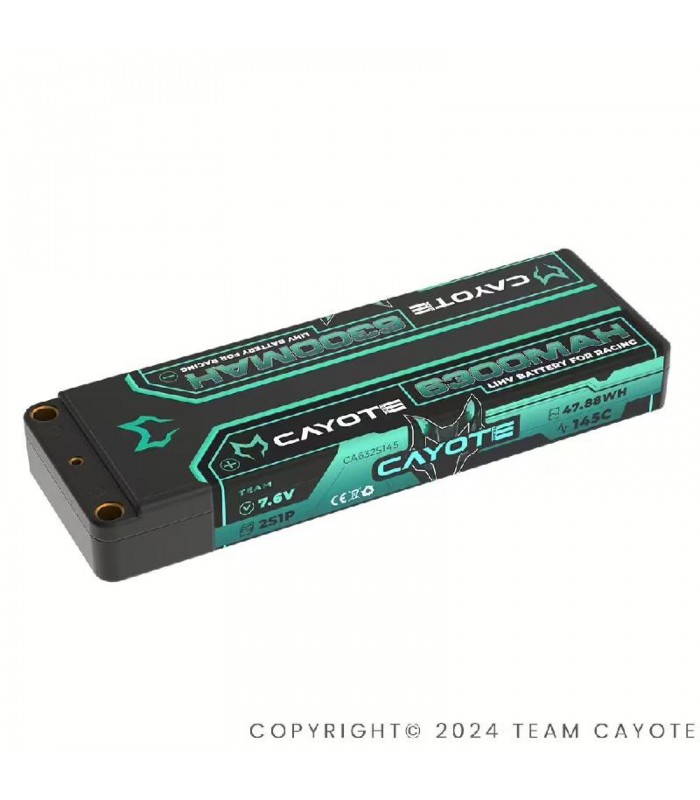

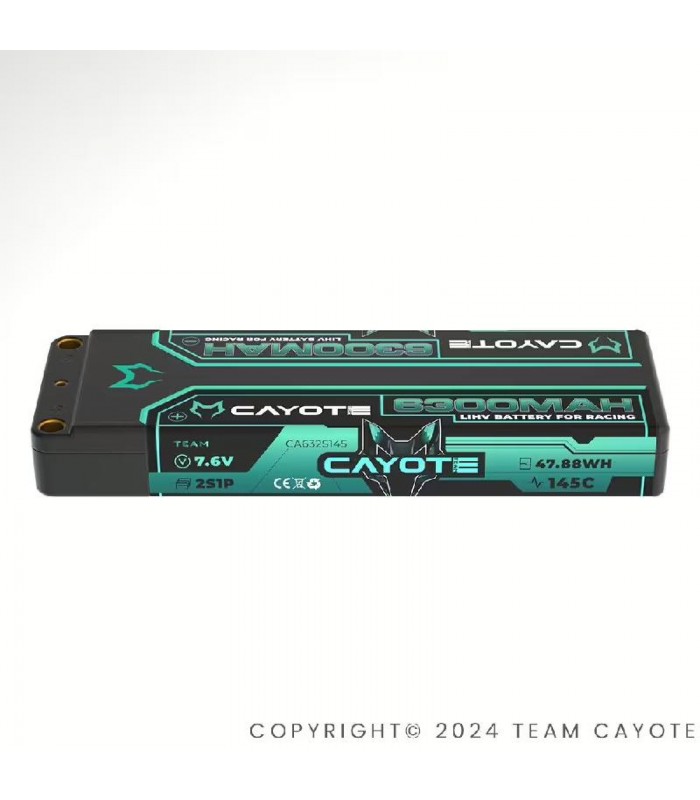

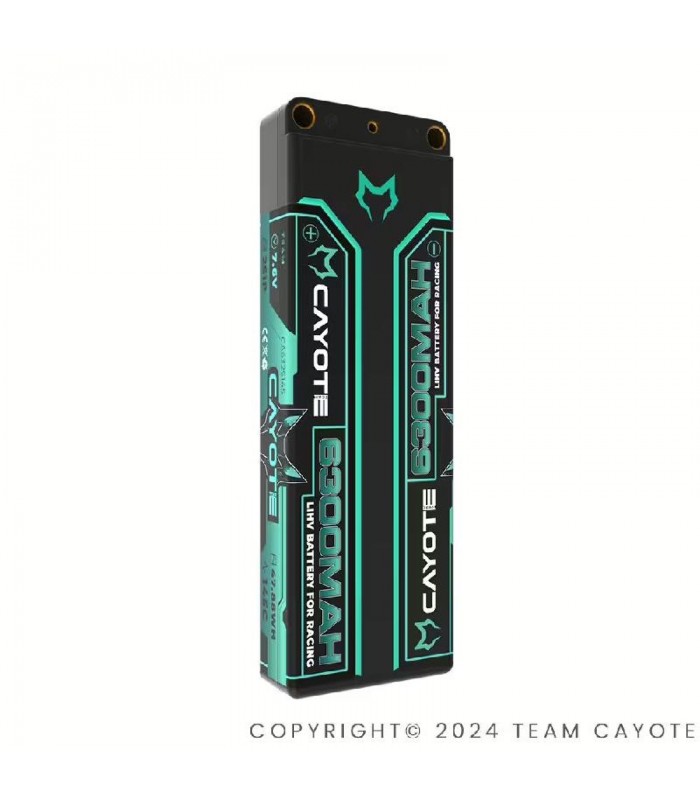

CAYOTE RACING LIPO 6300Mah 7.6V 145C

CAYOTE Racing 6300mAh 2S LiPo Battery 7,6V 145C 226g

CAYOTE Racing 2S Stick Pack LiPo battery with a capacity of 6300mAh at 7.6V and 145C.

Technical data:

Capacity: 6300mAh

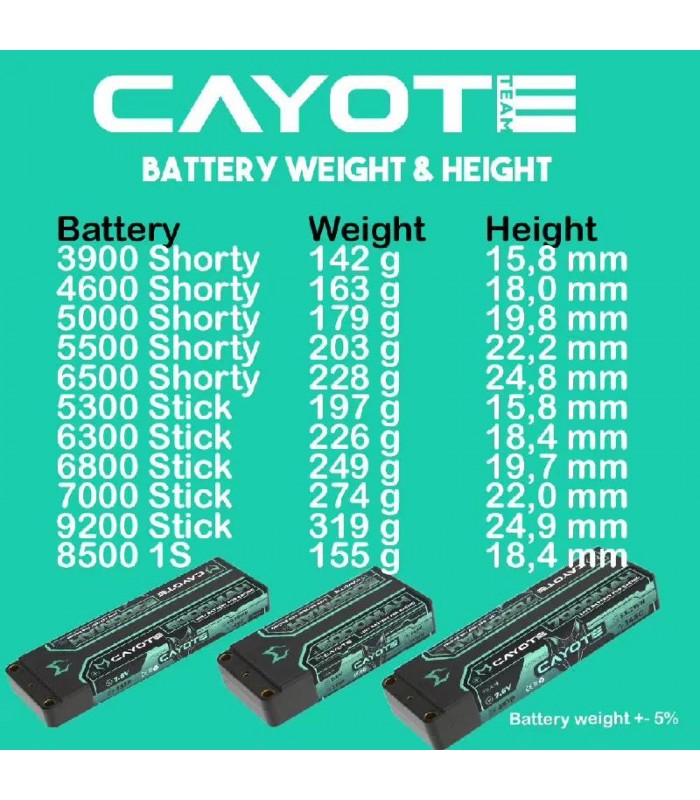

Weight: 226g (+- 5%)

Height of the battery: 18.4mm

C-rate: 145C

Watt hours: 47.88

Dimensions (L x W): 138.5 x 46.2mm

Connectors: 5mm sockets

Team CAYOTE Racing

LiPo/LiHV Racing Battery Maintenance Guide:

Improper use can accelerate battery degradation, reduce performance and lifespan, or evencause connector damage, leakage, or fire. Always inspect the battery for damage, swelling,or leakage before and after use. Do not use damaged batteries.

Charge Timing

Recharge promptly after use (>3.3V/cell). Avoid deep discharge (≤3.0V/cell)

Charging Temperature

10°C to 45°C

Voltage Settings

LiHV: ≤4.35V/cell

LiPo: ≤4.20V/cell

Current Settings

Recommended at 1c. (lf over-discharged, charge at 0.2C to >3.0V/cell before using higher current.)

Maximum Operating Temp

-20°C to 60°c (optimal: 10'c to 45°C).

Pre-warm in cold environments if needed.

Max Continuous Current

Shorty battery: ≤40A

Stick battery: ≤60A

Cutoff Voltage

3.0V/cell minimum. Avoid full charge/discharge-keep battery between 30%-90% for best cycle life.

Storage Conditions

Short-term (<3 months): -20C to 20°C, away from heat and sunlight.

Long-term (≥3 months): o'C to 25°C, ≤75% RH

Storage Voltage

3.8V/cell to 3.9V/cell. Do not store fully charged or empty.

Maintenance Cycle (Every Month)

Charge at 0.2C to 4.15V/cell → rest 5 min

Discharge to 3.2V/cell at 0.2C → rest 5 min

Charge to 3.85V/cell at 0.2C

Physical Protection

Avoid impact, puncture, or shock. Use protective packaging during

transport.

(Air)Transport Voltage

≤3.6V/cell
